P. 1009

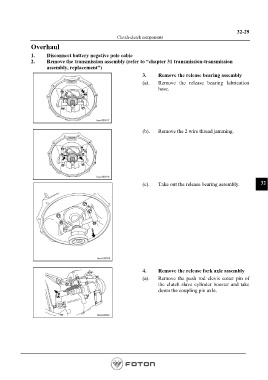

32-29
Clutch-clutch components
Overhaul
1. Disconnect battery negative pole cable
2. Remove the transmission assembly (refer to “chapter 31 transmission-transmission
assembly, replacement”)
3. Remove the release bearing assembly
(a). Remove the release bearing lubrication
hose.
(b). Remove the 2 wire thread jamming.
(c). Take out the release bearing assembly. 32
4. Remove the release fork axle assembly
(a). Remove the push rod clevis cotter pin of
the clutch slave cylinder booster and take
down the coupling pin axle.
