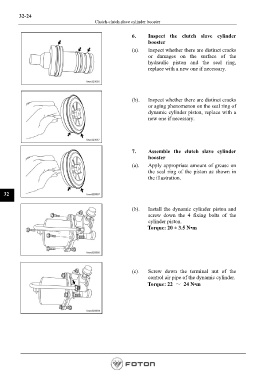

32-24
Clutch-clutch slave cylinder booster
6. Inspect the clutch slave cylinder
booster
(a). Inspect whether there are distinct cracks
or damages on the surface of the
hydraulic piston and the seal ring,
replace with a new one if necessary.
(b). Inspect whether there are distinct cracks
or aging phenomenon on the seal ring of
dynamic cylinder piston, replace with a
new one if necessary.
7. Assemble the clutch slave cylinder
booster
(a). Apply appropriate amount of grease on
the seal ring of the piston as shown in
the illustration.
32
(b). Install the dynamic cylinder piston and
screw down the 4 fixing bolts of the
cylinder piston.
Torque: 20 ± 3.5 N•m
(c). Screw down the terminal nut of the
control air pipe of the dynamic cylinder.
Torque: 22 ～ 24 N•m
