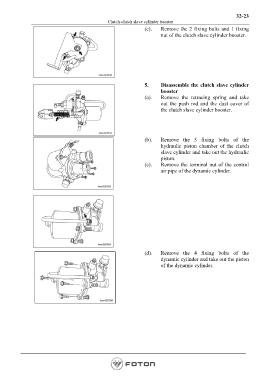

Clutch-clutch slave cylinder booster
(c). Remove the 2 fixing bolts and 1 fixing
nut of the clutch slave cylinder booster.
5. Disassemble the clutch slave cylinder
booster
(a). Remove the retracing spring and take
out the push rod and the dust cover of
the clutch slave cylinder booster.
(b). Remove the 5 fixing bolts of the
hydraulic piston chamber of the clutch
slave cylinder and take out the hydraulic
piston.
(c). Remove the terminal nut of the control
air pipe of the dynamic cylinder.
(d). Remove the 4 fixing bolts of the
dynamic cylinder and take out the piston
of the dynamic cylinder.
