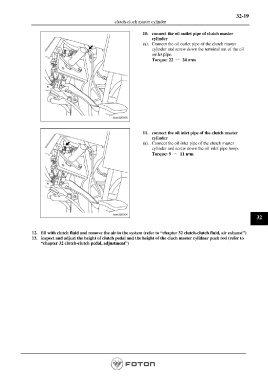

32-19
clutch-cluch master cylinder

10. connect the oil outlet pipe of clutch master
cylinder
(a). Connect the oil outlet pipe of the clutch master
cylinder and screw down the terminal nut of the oil
outlet pipe.
Torque: 22 ～ 24 n•m

11. connect the oil inlet pipe of the clutch master
cylinder
(a). Connect the oil inlet pipe of the clutch master
cylinder and screw down the oil inlet pipe hoop.
Torque: 9 ～ 11 n•m

32

12. fill with clutch fluid and remove the air in the system (refer to “chapter 32 clutch-clutch fluid, air exhaust”)
13. inspect and adjust the height of clutch pedal and the height of the cluch master cylidner push rod (refer to
“chapter 32 clutch-clutch pedal, adjustment”)
