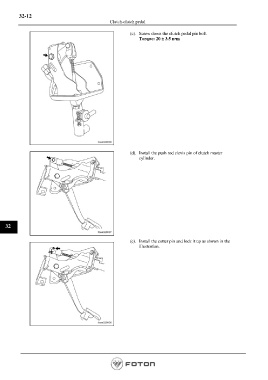

Page 992 - Workshop Manual - Aumark (BJ1051)
P. 992
32-12
Clutch-clutch pedal
(c). Screw down the clutch pedal pin bolt.
Torque: 20 ± 3.5 n•m
(d). Install the push rod clevis pin of clutch master
cylinder.
32
(e). Install the cotter pin and lock it up as shown in the
illustration.
Page 992
