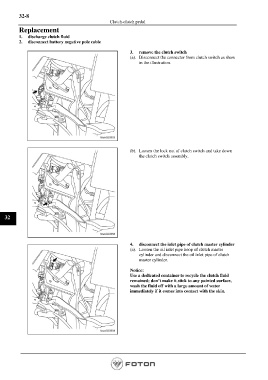

32-8
Clutch-clutch pedal
Replacement
1. discharge clutch fluid
2. disconnect battery negative pole cable

3. remove the clutch switch
(a). Disconnect the connector from clutch switch as show
in the illustration.

(b). Loosen the lock nut of clutch switch and take down
the clutch switch assembly.

32

4. disconnect the inlet pipe of clutch master cylinder
(a). Loosen the oil inlet pipe hoop of clutch master
cylinder and disconnect the oil inlet pipe of clutch
master cylinder.

Notice:
Use a dedicated container to recycle the clutch fluid
remained; don’t make it stick to any painted surface,
wash the fluid off with a large amount of water
immediately if it comes into contact with the skin.
