32-9

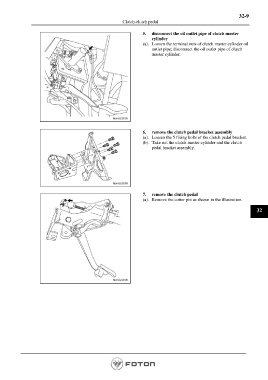

Clutch-clutch pedal
5. disconnect the oil outlet pipe of clutch master
cylinder
(a). Loosen the terminal nuts of clutch master cylinder oil
outlet pipe; disconnect the oil outlet pipe of clutch
master cylinder.
6. remove the clutch pedal bracket assembly
(a). Loosen the 5 fixing bolts of the clutch pedal bracket.
(b). Take out the clutch master cylinder and the clutch
pedal bracket assembly.
7. remove the clutch pedal
(a). Remove the cotter pin as shown in the illustration.
32
