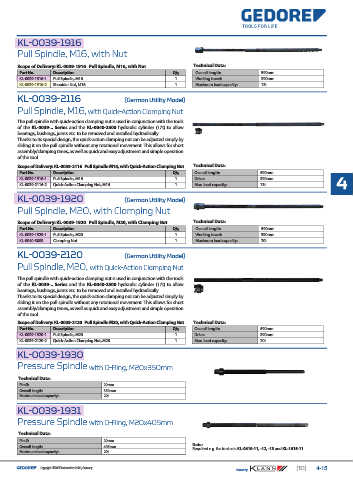

Kapitel_4.fm Seite 151 Montag, 10. April 2017 7:14 07

KL-0039-1916 KL-0039-1916
Pull Spindle, M16, with Nut

Scope of Delivery: KL-0039-1916 Pull Spindle, M16, with Nut Technical Data:
Part No. Description Qty Overall length: 590mm
KL-0039-1916-1 Pull Spindle, M16 1 Working travel: 390mm
KL-0039-1916-2 Shoulder Nut, M16 1 Maximum load capacity: 13t
KL-0039-2116 (German Utility Model) KL-0039-2116

Pull Spindle, M16, with Quick-Action Clamping Nut
The pull spindle with quick-action clamping nut is used in conjunction with the tools
of the KL-0039-.. Series and the KL-0040-2500 hydraulic cylinder (17t) to allow
bearings, bushings, joints etc. to be removed and installed hydraulically.
Thanks to its special design, the quick-action clamping nut can be adjusted simply by
sliding it on the pull spindle without any rotational movement. This allows for short
assembly/clamping times, as well as quick and easy adjustment and simple operation
of the tool.
Scope of Delivery: KL-0039-2116 Pull Spindle M16, with Quick-Action Clamping Nut Technical Data:
Part No. Description Qty Overall length: 590mm
KL-0039-1916-1 Pull Spindle, M16 1 Drive: 390mm
KL-0039-2116-2 Quick-Action Clamping Nut, M16 1 Max. load capacity: 13t 4
KL-0039-1920 (German Utility Model) KL-0039-1920

Pull Spindle, M20, with Clamping Nut

Scope of Delivery: KL-0039-1920 Pull Spindle, M20, with Clamping Nut Technical Data:
Part No. Description Qty Overall length: 590mm
KL-0039-1920-1 Pull Spindle, M20 1 Working travel: 390mm
KL-0040-3009 Clamping Nut 1 Maximum load capacity: 20t
KL-0039-2120 (German Utility Model) KL-0039-2120

Pull Spindle, M20, with Quick-Action Clamping Nut
The pull spindle with quick-action clamping nut is used in conjunction with the tools
of the KL-0039-.. Series and the KL-0040-2500 hydraulic cylinder (17t) to allow
bearings, bushings, joints etc. to be removed and installed hydraulically.
Thanks to its special design, the quick-action clamping nut can be adjusted simply by
sliding it on the pull spindle without any rotational movement. This allows for short
assembly/clamping times, as well as quick and easy adjustment and simple operation
of the tool.
Scope of Delivery: KL-0039-2120 Pull Spindle M20, with Quick-Action Clamping Nut Technical Data:
Part No. Description Qty Overall length: 590mm
KL-0039-1920-1 Pull Spindle, M20 1 Drive: 390mm
KL-0039-2120-2 Quick-Action Clamping Nut, M20 1 Max. load capacity: 20t
KL-0039-1930 KL-0039-1930

Pressure Spindle with O-Ring, M20x350mm
Technical Data:
Pin Ø: 20mm
Overall length: 350mm
Maximum load capacity: 20t

KL-0039-1931 KL-0039-1931

Pressure Spindle with O-Ring, M20x405mm
Technical Data:
Pin-Ø: 20mm
Overall length: 405mm Note:
Required e.g. for tool sets KL-0610-11, -12, -13 and KL-1615-11.
Maximum load capacity: 20t

Copyright GEDORE Automotive GmbH, Germany (151) 4-15
