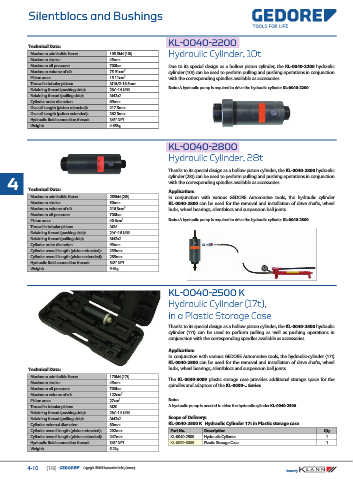

Silentblocs and Bushings

KL-0040-2200
Technical Data: KL-0040-2200
Maximum admissible force: 105.8kN (10t) Hydraulic Cylinder, 10t
Maximum stroke: 45mm
Maximum oil pressure: 700bar Due to its special design as a hollow piston cylinder, the KL-0040-2200 hydraulic
Maximum volume of oil: 75.91cm³ cylinder (10t) can be used to perform pulling and pushing operations in conjunction
Piston area: 15.11cm² with the corresponding spindles available as accessories.
Thread in tubular piston: M16/Ø 16.5mm
Retaining thread (pushing side): 2¼“-14 UNS Note: A hydraulic pump is required to drive the hydraulic cylinder KL-0040-2200.
Retaining thread (pulling side): M42x2
Cylinder outer diameter: 69mm
Overall Length (piston retracted): 217.5mm
Overall Length (psiton extended): 262.5mm
Hydraulic fluid connection thread: 3/8“ NPT
Weight: 4.65kg

KL-0040-2800
KL-0040-2800
Hydraulic Cylinder, 28t

Thanks to its special design as a hollow piston cylinder, the KL-0040-2800 hydraulic
cylinder (28t) can be used to perform pulling and pushing operations in conjunction
4 with the corresponding spindles available as accessories.
Technical Data: Application:
Maximum admissible force: 285kN (28t) In conjunction with various GEDORE Automotive tools, the hydraulic cylinder
Maximum stroke: 50mm KL-0040-2800 can be used for the removal and installation of drive shafts, wheel
Maximum volume of oil: 216.3cm³ hubs, wheel bearings, silentblocs and suspension ball joints.
Maximum oil pressure: 700bar
Piston area: 40.6cm² Note: A hydraulic pump is required to drive the hydraulic cylinder KL-0040-2800.
Thread in tubular piston: M24
Retaining thread (pushing side): 2¾“-16 UNS
Retaining thread (pulling side): M42x2
Cylinder outer diameter: 99mm
Cylinder overall length (piston retracted): 235mm
Cylinder overall length (piston extended): 285mm
Hydraulic fluid connection thread: 3/8“ NPT
Weight: 9.6kg

KL-0040-2500 K
KL-0040-2500 K
Hydraulic Cylinder (17t),

in a Plastic Storage Case

Thanks to its special design as a hollow piston cylinder, the KL-0040-2500 hydraulic
cylinder (17t) can be used to perform pulling as well as pushing operations in
conjunction with the corresponding spindles available as accessories.

Application:
In conjunction with various GEDORE Automotive tools, the hydraulic-cylinder (17t)
KL-0040-2500 can be used for the removal and installation of drive shafts, wheel
Technical Data: hubs, wheel bearings, silentblocs and suspension ball joints.
Maximum admissible force: 170kN (17t)
The KL-0039-8009 plastic storage case provides additional storage space for the
Maximum stroke: 45mm
spindles and adaptors of the KL-0039-.. Series.
Maximum oil pressure: 700bar
Maximum volume of oil: 122cm³
Piston area: 27cm² Note:
A hydraulic pump is needed to drive the hydraulic cylinder KL-0040-2500.
Thread in tubular piston: M20
Retaining thread (pushing side): 2¼“-14 UNS
Retaining thread (pulling side): M42x2 Scope of Delivery:
Cylinder external diameter: 80mm KL-0040-2500 K Hydraulic Cylinder 17t in Plastic storage case
Cylinder overall length (piston retracted): 202mm Part No. Description Qty
Cylinder overall length (piston extended): 247mm KL-0040-2500 Hydraulic Cylinder 1
Hydraulic fluid connection thread: 3/8“ NPT KL-0039-8009 Plastic Storage Case 1
Weight: 5.2kg
