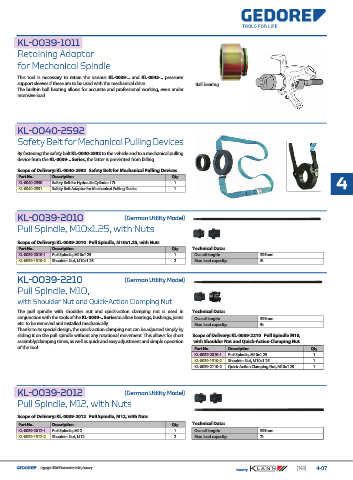

Kapitel_4.fm Seite 143 Montag, 10. April 2017 7:14 07

KL-0039-1011 KL-0039-1011
Retaining Adaptor
for Mechanical Spindle

This tool is necessary to retain the various KL-0039-.. and KL-0043-.. pressure/
support sleeves if these are to be used with the mechanical drive. E Ball bearing
The built-in ball bearing allows for accurate and professional working, even under
intensive load.

KL-0040-2592 KL-0040-2592
Safety Belt for Mechanical Pulling Devices

By fastening the safety belt KL-0040-2592 to the vehicle and to a mechanical pulling
device from the KL-0039-.. Series, the latter is prevented from falling.

Scope of Delivery: KL-0040-2592 Safety Belt for Mechanical Pulling Devices
Part No. Description Qty
KL-0040-2590 Safety Belt for Hydraulic Cylinder 17t 1 4
KL-0040-2591 Safety Belt Adaptor for Mechanical Pulling Device 1

KL-0039-2010 (German Utility Model) KL-0039-2010

Pull Spindle, M10x1.25, with Nuts

Scope of Delivery: KL-0039-2010 Pull Spindle, M10x1.25, with Nuts
Part No. Description Qty Technical Data:
KL-0039-2010-1 Pull Spindle, M10x1.25 1 Overall length: 395mm
KL-0039-1910-2 Shoulder Nut, M10x1.25 2 Max. load capacity: 5t

KL-0039-2210 (German Utility Model) KL-0039-2210
Pull Spindle, M10,
with Shoulder Nut and Quick-Action Clamping Nut
The pull spindle with shoulder nut and quick-action clamping nut is used in Technical Data:
conjunction with the tools of the KL-0039-.. Series to allow bearings, bushings, joints Overall length: 395mm
etc. to be removed and installed mechanically. Max. load capacity: 5t
Thanks to its special design, the quick-action clamping nut can be adjusted simply by
sliding it on the pull spindle without any rotational movement. This allows for short Scope of Delivery: KL-0039-2210 Pull Spindle M10,
assembly/clamping times, as well as quick and easy adjustment and simple operation with Shoulder Nut and Quick-Action Clamping Nut
of the tool. Part No. Description Qty
KL-0039-2010-1 Pull Spindle, M10x1.25 1
KL-0039-1910-2 Shoulder Nut, M10x1.25 1
KL-0039-2110-2 Quick-Action Clamping Nut, M10x1.25 1

KL-0039-2012 (German Utility Model) KL-0039-2012

Pull Spindle, M12, with Nuts

Scope of Delivery: KL-0039-2012 Pull Spindle, M12, with Nuts
Part No. Description Qty Technical Data:
KL-0039-2012-1 Pull Spindle, M12 1 Overall length: 395mm
KL-0039-1912-2 Shoulder Nut, M12 2 Max. load capacity: 7t

Copyright GEDORE Automotive GmbH, Germany (143) 4-07
