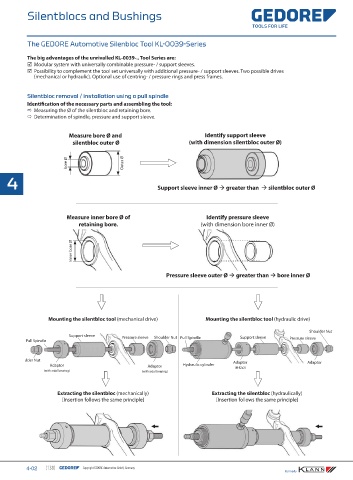

Silentblocs and Bushings
The GEDORE Automotive Silenbloc Tool KL-0039-Series
The big advantages of the unrivalled KL-0039-.. Tool Series are:
Modular system with universally combinable pressure- / support sleeves.
Possibility to complement the tool set universally with additional pressure- / support sleeves. Two possible drives
(mechanical or hydraulic). Optional use of centring- / pressure rings and press frames.
Silentbloc removal / installation using a pull spindle
Identification of the necessary parts and assembling the tool:
Measuring the Ø of the silentbloc and retaining bore.
Determination of spindle, pressure and support sleeve.
Measure bore Ø and Identify support sleeve
silentbloc outer Ø (with dimension silentbloc outer Ø)
bore Ø Outer Ø
4 Support sleeve inner Ø greater than silentbloc outer Ø
Measure inner bore Ø of Identify pressure sleeve
retaining bore. (with dimension bore inner Ø)
Inner bore Ø
Pressure sleeve outer Ø greater than bore inner Ø
Mounting the silentbloc tool (mechanical drive) Mounting the silentbloc tool (hydraulic drive)
Shoulder Nut
Support sleeve Pressure sleeve Shoulder Nut Pull Spindle Support sleeve
Pull Spindle Pressure sleeve
ulder Nut Adaptor Adaptor
Adaptor Adaptor Hydraulic cylinder (M42x2)
(with axial bearing) (with axial bearing)
Extracting the silentbloc (mechanically) Extracting the silentbloc (hydraulically)
[Insertion follows the same principle] [Insertion follows the same principle]
