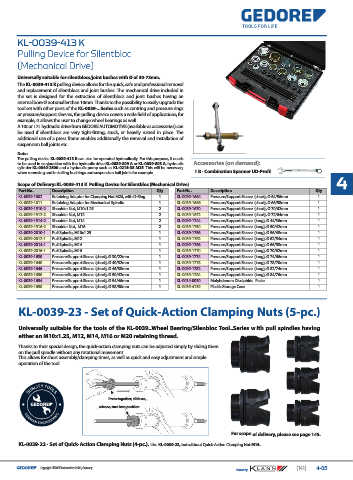

Kapitel_4.fm Seite 141 Montag, 10. April 2017 7:14 07

KL-0039-413 K KL-0039-413 K
Pulling Device for Silentbloc
(Mechanical Drive)

Universally suitable for silentblocs/joint bushes with Ø of 30-73mm.
The KL-0039-413 K pulling device allows for the quick, safe and professional removal
and replacement of silentblocs and joint bushes. The mechanical drive included in
the set is designed for the extraction of silentblocs and joint bushes having an
internal bore Ø not smaller than 10mm. Thanks to the possibility to easily upgrade the
tool set with other parts of the KL-0039-.. Series such as centring and pressure rings
or pressure/support sleeves, the pulling device covers a wide field of applications; for
example, it allows the user to change wheel bearings as well.
A 10t or 17t hydraulic drive from GEDORE AUTOMOTIVE (available as accessories) can
be used if silentblocs are very tight-fitting, stuck, or heavily rusted in place. The
additional use of a press frame enables additionally the removal and installation of
suspension ball joints etc.
Note:
The pulling device KL-0039-413 K can also be operated hydraulically. For this purpose, it needs
to be used in conjunction with the hydraulic drive KL-0039-809 A or KL-0039-803 A, hydraulic Accessories (on demand):
cylinder KL-0040-2500 and a hydraulic pump such as KL-0215-35 M25. This will be necessary
when removing and installing bushings and suspension ball joints for example. 1 B - Combination Spanner UD-Profil

Scope of Delivery: KL-0039-413 K Pulling Device for Silentbloc (Mechanical Drive) 4
Part No. Description Qty Part No. Description Qty
KL-0039-1002 Retaining Adaptor for Clamping Nut M20, with O-Ring 1 KL-0039-1664 Pressure/Support Sleeve (short), Ø 64/56mm 1
KL-0039-1011 Retaining Adaptor for Mechanical Spindle 1 KL-0039-1666 Pressure/Support Sleeve (short), Ø 66/58mm 1
KL-0039-1910-2 Shoulder Nut, M10x1.25 2 KL-0039-1670 Pressure/Support Sleeve (short), Ø 70/62mm 1
KL-0039-1912-2 Shoulder Nut, M12 2 KL-0039-1672 Pressure/Support Sleeve (short), Ø 72/64mm 1
KL-0039-1914-2 Shoulder Nut, M14 2 KL-0039-1744 Pressure/Support Sleeve (long), Ø 44/36mm 1
KL-0039-1916-2 Shoulder Nut, M16 2 KL-0039-1750 Pressure/Support Sleeve (long), Ø 50/42mm 1
KL-0039-2010-1 Pull Spindle, M10x1.25 1 KL-0039-1756 Pressure/Support Sleeve (long), Ø 56/48mm 1
KL-0039-2012-1 Pull Spindle, M12 1 KL-0039-1762 Pressure/Support Sleeve (long), Ø 62/54mm 1
KL-0039-2014-1 Pull Spindle, M14 1 KL-0039-1766 Pressure/Support Sleeve (long), Ø 66/58mm 1
KL-0039-2016-1 Pull Spindle, M16 1 KL-0039-1770 Pressure/Support Sleeve (long), Ø 70/62mm 1
KL-0039-1630 Pressure/Support Sleeve (short), Ø 30/22mm 1 KL-0039-1774 Pressure/Support Sleeve (long), Ø 74/66mm 1
KL-0039-1640 Pressure/Support Sleeve (short), Ø 40/32mm 1 KL-0039-1778 Pressure/Support Sleeve (long), Ø 78/70mm 1
KL-0039-1646 Pressure/Support Sleeve (short), Ø 46/38mm 1 KL-0039-1782 Pressure/Support Sleeve (long), Ø 82/74mm 1
KL-0039-1650 Pressure/Support Sleeve (short), Ø 50/42mm 1 KL-0039-1784 Pressure/Support Sleeve (long), Ø 84/76mm 1
KL-0039-1654 Pressure/Support Sleeve (short), Ø 54/46mm 1 KL-0014-0030 Molybdenum Disulphide Paste 1
KL-0039-1658 Pressure/Support Sleeve (short), Ø 58/50mm 1 KL-0039-4139 Plastic Storage Case 1

KL-0039-160 K
KL-0039-23 - Set of Quick-Action Clamping Nuts (5-pc.)

Universally suitable for the tools of the KL-0039..Wheel Bearing/Silenbloc Tool..Series with pull spindles having
either an M10x1.25, M12, M14, M16 or M20 retaining thread.
Thanks to their special design, the quick-action clamping nuts can be adjusted simply by sliding them
on the pull spindle without any rotational movement.
This allows for short assembly/clamping times, as well as quick and easy adjustment and simple
operation of the tool.

Press together, slide on, ...
... release, turn into position.

For scope of delivery, please see page 145.
KL-0039-22 - Set of Quick-Action Clamping Nuts (4-pc.). Like KL-0039-23, but without Quick-Action Clamping Nut M16.
