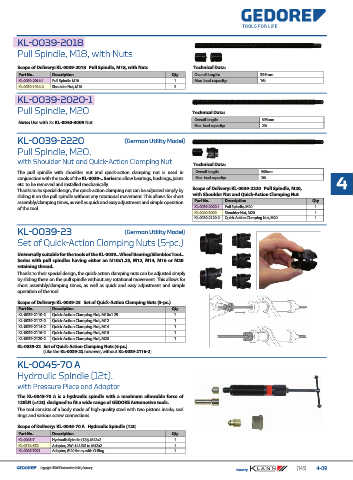

KL-0039-2018 KL-0039-2018
Pull Spindle, M18, with Nuts

Scope of Delivery: KL-0039-2018 Pull Spindle, M18, with Nuts Technical Data:
Part No. Description Qty Overall length: 395mm
KL-0039-2014-1 Pull Spindle M18 1 Max. load capacity: 16t
KL-0039-1914-2 Shoulder Nut, M18 2

KL-0039-2020-1 KL-0039-2020-1
Pull Spindle, M20 Technical Data:
Overall length: 395mm
Note: Use with 2x KL-0040-3009 Nut.
Max. load capacity: 20t
KL-0039-2220 (German Utility Model) KL-0039-2220
Pull Spindle, M20,

with Shoulder Nut and Quick-Action Clamping Nut
Technical Data:
The pull spindle with shoulder nut and quick-action clamping nut is used in Overall length: 395mm
conjunction with the tools of the KL-0039-.. Series to allow bearings, bushings, joints Max. load capacity: 20t
etc. to be removed and installed mechanically. 4
Thanks to its special design, the quick-action clamping nut can be adjusted simply by Scope of Delivery: KL-0039-2220 Pull Spindle, M20,
sliding it on the pull spindle without any rotational movement. This allows for short with Shoulder Nut and Quick-Action Clamping Nut
assembly/clamping times, as well as quick and easy adjustment and simple operation Part No. Description Qty
of the tool. KL-0039-2020-1 Pull Spindle, M20 1
KL-0040-3009 Shoulder Nut, M20 1
KL-0039-2120-2 Quick-Action Clamping Nut, M20 1
KL-0039-23 (German Utility Model) KL-0039-23

Set of Quick-Action Clamping Nuts (5-pc.)
Universally suitable for the tools of the KL-0039.. Wheel Bearing/Silenbloc Tool..
Series with pull spindles having either an M10x1.25, M12, M14, M16 or M20
retaining thread.
Thanks to their special design, the quick-action clamping nuts can be adjusted simply
by sliding them on the pull spindle without any rotational movement. This allows for
short assembly/clamping times, as well as quick and easy adjustment and simple
operation of the tool.

Scope of Delivery: KL-0039-23 Set of Quick-Action Clamping Nuts (5-pc.)
Part No. Description Qty
KL-0039-2110-2 Quick-Action Clamping Nut, M10x1.25 1
KL-0039-2112-2 Quick-Action Clamping Nut, M12 1
KL-0039-2114-2 Quick-Action Clamping Nut, M14 1
KL-0039-2116-2 Quick-Action Clamping Nut, M16 1
KL-0039-2120-2 Quick-Action Clamping Nut, M20 1
KL-0039-22 Set of Quick-Action Clamping Nuts (4-pc.)
(Like the KL-0039-23, however, without KL-0039-2116-2)
KL-0045-70 A KL-0045-70 A

Hydraulic Spindle (12t),
with Pressure Piece and Adaptor
The KL-0045-70 A is a hydraulic spindle with a maximum allowable force of
120kN (=12t) designed to fit a wide range of GEDORE Automotive tools.
The tool consists of a body made of high-quality steel with two pistons inside, seal
rings and various screw connections.

Scope of Delivery: KL-0045-70 A Hydraulic Spindle (12t)
Part No. Description Qty
KL-0045-7 Hydraulic Spindle (12t), M42x2 1
KL-0174-552 Adaptor, 2¼“-14 UNS to M42x2 1
KL-0045-7021 Adaptor, Ø 20.5mm, with O-Ring 1

Copyright GEDORE Automotive GmbH, Germany (145) 4-09
