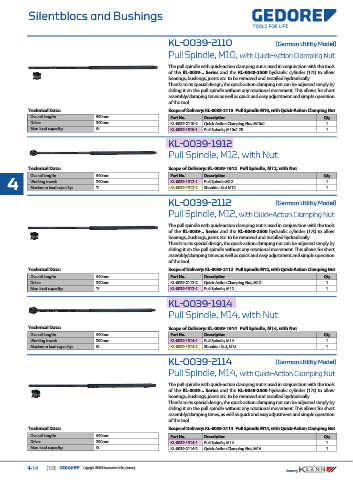

Silentblocs and Bushings

KL-0039-2110 (German Utility Model)
KL-0039-2110
Pull Spindle, M10, with Quick-Action Clamping Nut

The pull spindle with quick-action clamping nut is used in conjunction with the tools
of the KL-0039-.. Series and the KL-0040-2500 hydraulic cylinder (17t) to allow
bearings, bushings, joints etc. to be removed and installed hydraulically.
Thanks to its special design, the quick-action clamping nut can be adjusted simply by
sliding it on the pull spindle without any rotational movement. This allows for short
assembly/clamping times as well as quick and easy adjustment and simple operation
of the tool.
Technical Data: Scope of Delivery: KL-0039-2110 Pull Spindle M10, with Quick-Action Clamping Nut
Overall length: 590mm Part No. Description Qty
Drive: 390mm KL-0039-2110-2 Quick-Action Clamping Nut, M10x1 1
Max. load capacity: 5t KL-0039-1910-1 Pull Spindle, M10x1.25 1

KL-0039-1912
KL-0039-1912
Pull Spindle, M12, with Nut

Technical Data: Scope of Delivery: KL-0039-1912 Pull Spindle, M12, with Nut
Overall length: 590mm Part No. Description Qty
4 Working travel: 390mm KL-0039-1912-1 Shoulder Nut M12 1 1
Pull Spindle M12
7t
KL-0039-1912-2
Maximum load capacity:
KL-0039-2112
KL-0039-2112 (German Utility Model)
Pull Spindle, M12, with Quick-Action Clamping Nut
The pull spindle with quick-action clamping nut is used in conjunction with the tools
of the KL-0039-.. Series and the KL-0040-2500 hydraulic cylinder (17t) to allow
bearings, bushings, joints etc. to be removed and installed hydraulically.
Thanks to its special design, the quick-action clamping nut can be adjusted simply by
sliding it on the pull spindle without any rotational movement. This allows for short
assembly/clamping times as well as quick and easy adjustment and simple operation
of the tool.
Technical Data: Scope of Delivery: KL-0039-2112 Pull Spindle M12, with Quick-Action Clamping Nut
Overall length: 590mm Part No. Description Qty
Drive: 390mm KL-0039-2112-2 Quick-Action Clamping Nut, M12 1
Max. load capacity: 7t KL-0039-1912-1 Pull Spindle, M12 1
KL-0039-1914
KL-0039-1914
Pull Spindle, M14, with Nut

Technical Data: Scope of Delivery: KL-0039-1914 Pull Spindle, M14, with Nut
Overall length: 590mm Part No. Description Qty
Working travel: 390mm KL-0039-1914-1 Pull Spindle, M14 1
Maximum load capacity: 9t KL-0039-1914-2 Shoulder Nut, M14 1

KL-0039-2114 (German Utility Model)
KL-0039-2114
Pull Spindle, M14, with Quick-Action Clamping Nut

The pull spindle with quick-action clamping nut is used in conjunction with the tools
of the KL-0039-.. Series and the KL-0040-2500 hydraulic cylinder (17t) to allow
bearings, bushings, joints etc. to be removed and installed hydraulically.
Thanks to its special design, the quick-action clamping nut can be adjusted simply by
sliding it on the pull spindle without any rotational movement. This allows for short
assembly/clamping times, as well as quick and easy adjustment and simple operation
of the tool.
Technical Data: Scope of Delivery: KL-0039-2114 Pull Spindle M14, with Quick-Action Clamping Nut
Overall length: 590mm Part No. Description Qty
Drive: 390mm KL-0039-1914-1 Pull Spindle, M14 1
Max. load capacity: 9t KL-0039-2114-2 Quick-Action Clamping Nut, M14 1

4-14 (150) Copyright GEDORE Automotive GmbH, Germany
