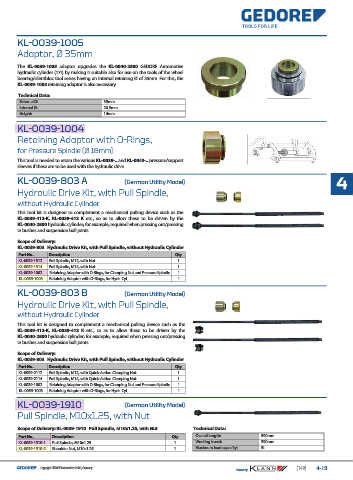

Kapitel_4.fm Seite 149 Montag, 10. April 2017 7:14 07

KL-0039-1005 KL-0039-1005
Adaptor, Ø 35mm

The KL-0039-1005 adaptor upgrades the KL-0040-2500 GEDORE Automotive
hydraulic cylinder (17t) by making it suitable also for use on the tools of the wheel
bearing/silentbloc tool series having an internal retaining Ø of 35mm. For this, the
KL-0039-1003 retaining adaptor is also necessary.
Technical Data:
External Ø: 35mm
Internal Ø: 20.5mm
Height: 16mm

KL-0039-1004 KL-0039-1004
Retaining Adaptor with O-Rings,
for Pressure Spindle (Ø 18mm)

This tool is needed to retain the various KL-0039-.. and KL-0043-.. pressure/support
sleeves if these are to be used with the hydraulic drive.

KL-0039-803 A (German Utility Model) KL-0039-803 A 4
Hydraulic Drive Kit, with Pull Spindle,

without Hydraulic Cylinder
This tool kit is designed to complement a mechanical pulling device such as the
KL-0039-412-K, KL-0039-413 K etc., so as to allow these to be driven by the
KL-0040-2500 hydraulic cylinder; for example, required when pressing out/pressing
in bushes and suspension ball joints.
Scope of Delivery:
KL-0039-803 Hydraulic Drive Kit, with Pull Spindle, without Hydraulic Cylinder
Part No. Description Qty
KL-0039-1912 Pull Spindle, M12, with Nut 1
KL-0039-1914 Pull Spindle, M14, with Nut 1
KL-0039-1002 Retaining Adaptor with O-Rings, for Clamping Nut and Pressure Spindle 1
KL-0039-1003 Retaining Adaptor with O-Rings, for Hydr. Cyl. 1
KL-0039-803 B (German Utility Model) KL-0039-803 B

Hydraulic Drive Kit, with Pull Spindle,
without Hydraulic Cylinder
This tool kit is designed to complement a mechanical pulling device such as the
KL-0039-412-K, KL-0039-413 K etc., so as to allow these to be driven by the
KL-0040-2500 hydraulic cylinder; for example, required when pressing out/pressing
in bushes and suspension ball joints.
Scope of Delivery:
KL-0039-803 Hydraulic Drive Kit, with Pull Spindle, without Hydraulic Cylinder
Part No. Description Qty
KL-0039-2112 Pull Spindle, M12, with Quick-Action Clamping Nut 1
KL-0039-2114 Pull Spindle, M14, with Quick-Action Clamping Nut 1
KL-0039-1002 Retaining Adaptor with O-Rings, for Clamping Nut and Pressure Spindle 1
KL-0039-1003 Retaining Adaptor with O-Rings, for Hydr. Cyl. 1

KL-0039-1910 (German Utility Model) KL-0039-1910
Pull Spindle, M10x1.25, with Nut

Scope of Delivery: KL-0039-1910 Pull Spindle, M10x1.25, with Nut Technical Data:
Part No. Description Qty Overall length: 590mm
KL-0039-1910-1 Pull Spindle, M10x1.25 1 Working travel: 390mm
KL-0039-1910-2 Shoulder Nut, M10x1.25 1 Maximum load capacity: 5t

Copyright GEDORE Automotive GmbH, Germany (149) 4-13
