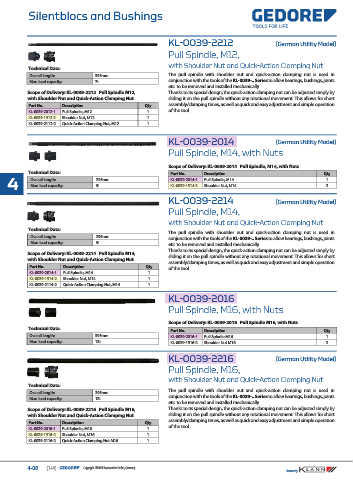

Silentblocs and Bushings

KL-0039-2212
KL-0039-2212 (German Utility Model)
Pull Spindle, M12,
with Shoulder Nut and Quick-Action Clamping Nut
Technical Data:
Overall length: 395mm The pull spindle with shoulder nut and quick-action clamping nut is used in
Max. load capacity: 7t conjunction with the tools of the KL-0039-.. Series to allow bearings, bushings, joints
etc. to be removed and installed mechanically.
Scope of Delivery: KL-0039-2212 Pull Spindle M12, Thanks to its special design, the quick-action clamping nut can be adjusted simply by
with Shoulder Nut and Quick-Action Clamping Nut sliding it on the pull spindle without any rotational movement. This allows for short
Part No. Description Qty assembly/clamping times, as well as quick and easy adjustment and simple operation
KL-0039-2012-1 Pull Spindle, M12 1 of the tool.
KL-0039-1912-2 Shoulder Nut, M12 1
KL-0039-2112-2 Quick-Action Clamping Nut, M12 1

KL-0039-2014 (German Utility Model)
KL-0039-2014
Pull Spindle, M14, with Nuts

Scope of Delivery: KL-0039-2014 Pull Spindle, M14, with Nuts
Technical Data: Part No. Description Qty
Pull Spindle, M14
4 Overall length: 395mm KL-0039-2014-1 Shoulder Nut, M14 1 2
Max. load capacity:
KL-0039-1914-2
9t
KL-0039-2214
KL-0039-2214 (German Utility Model)
Pull Spindle, M14,
with Shoulder Nut and Quick-Action Clamping Nut
Technical Data:
The pull spindle with shoulder nut and quick-action clamping nut is used in
Overall length: 395mm
conjunction with the tools of the KL-0039-.. Series to allow bearings, bushings, joints
Max. load capacity: 9t
etc. to be removed and installed mechanically.
Thanks to its special design, the quick-action clamping nut can be adjusted simply by
Scope of Delivery: KL-0039-2214 Pull Spindle M14, sliding it on the pull spindle without any rotational movement. This allows for short
with Shoulder Nut and Quick-Action Clamping Nut
assembly/clamping times, as well as quick and easy adjustment and simple operation
Part No. Description Qty of the tool.
KL-0039-2014-1 Pull Spindle, M14 1
KL-0039-1914-2 Shoulder Nut, M14 1
KL-0039-2114-2 Quick-Action Clamping Nut, M14 1
KL-0039-2016
KL-0039-2016
Pull Spindle, M16, with Nuts

Scope of Delivery: KL-0039-2016 Pull Spindle M16, with Nuts
Technical Data: Part No. Description Qty
Overall length: 395mm KL-0039-2016-1 Pull Spindle M16 1
Max. load capacity: 13t KL-0039-1916-2 Shoulder Nut M16 2

KL-0039-2216
KL-0039-2216 (German Utility Model)
Pull Spindle, M16,

with Shoulder Nut and Quick-Action Clamping Nut
Technical Data:
The pull spindle with shoulder nut and quick-action clamping nut is used in
Overall length: 395mm
conjunction with the tools of the KL-0039-.. Series to allow bearings, bushings, joints
Max. load capacity: 13t
etc. to be removed and installed mechanically.
Thanks to its special design, the quick-action clamping nut can be adjusted simply by
Scope of Delivery: KL-0039-2216 Pull Spindle M16,
sliding it on the pull spindle without any rotational movement. This allows for short
with Shoulder Nut and Quick-Action Clamping Nut
assembly/clamping times, as well as quick and easy adjustment and simple operation
Part No. Description Qty
of the tool.
KL-0039-2016-1 Pull Spindle, M16 1
KL-0039-1916-2 Shoulder Nut, M16 1
KL-0039-2116-2 Quick-Action Clamping Nut M16 1
4-08 (144) Copyright GEDORE Automotive GmbH, Germany
