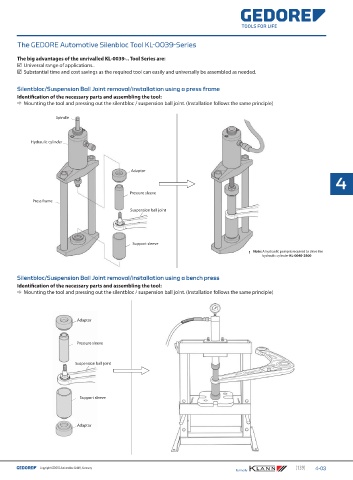

The GEDORE Automotive Silenbloc Tool KL-0039-Series

The big advantages of the unrivalled KL-0039-.. Tool Series are:
Universal range of applications..
Substantial time and cost savings as the required tool can easily and universally be assembled as needed.

Silentbloc/Suspension Ball Joint removal/installation using a press frame
Identification of the necessary parts and assembling the tool:
Mounting the tool and pressing out the silentbloc / suspension ball joint. (Installation follows the same principle)

Spindle

Hydraulic cylinder

Adaptor
4

Pressure sleeve
Press frame
Suspension ball joint

Support sleeve
Note: A hydraulic pump is required to drive the
hydraulic cylinder KL-0040-2500

Silentbloc/Suspension Ball Joint removal/installation using a bench press
Identification of the necessary parts and assembling the tool:
Mounting the tool and pressing out the silentbloc / suspension ball joint. (Installation follows the same principle)

Adaptor

Pressure sleeve

Suspension ball joint

Support sleeve

Adaptor

chiedenen
ge sowie der
eraußen-Ø
Ø)
rungsinnen-Ø
t hydraulischem Antrieb)
Druckhülse Bundmutter
Adapter
(hydraulisch) gleichen Prinzip]
formerly
Copyright GEDORE Automotive GmbH, Germany (139) 4-03
