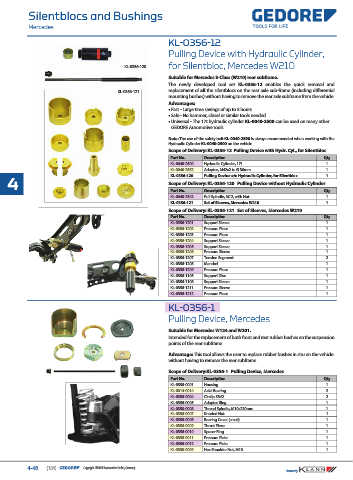

Silentblocs and Bushings
Mercedes

KL-0356-12
KL-0356-12
Pulling Device with Hydraulic Cylinder,
for Silentbloc, Mercedes W210
KL-0356-120
Suitable for Mercedes E-Class (W210) rear subframe.
The newly developed tool set KL-0356-12 enables the quick removal and
replacement of all the silentblocs on the rear axle sub-frame (including differential
KL-0356-121
mounting bushes) without having to remove the rear axle subframe from the vehicle.
Advantages:
• Fast - Large time savings of up to 3 hours.
• Safe - No hammer, chisel or similar tools needed.
• Universal - The 17t hydraulic cylinder KL-0040-2500 can be used on many other
GEDORE Automotive tools.
Note: The use of the safety belt KL-0040-2590 is always recommended when working with the
Hydraulic Cylinder KL-0040-2500 on the vehicle.
Scope of Delivery: KL-0356-12 Pulling Device with Hydr. Cyl., for Silentbloc
Part No. Description Qty
KL-0040-2500 Hydraulic Cylinder, 17t 1
KL-0040-2552 Adaptor, M42x2 to Ø 30mm 1
KL-0356-120 Pulling Device w/o Hydraulic Cylinder, for Silentbloc 1
4 Scope of Delivery: KL-0356-120 Pulling Device without Hydraulic Cylinder
Part No. Description Qty
KL-0040-2542 Pull Spindle, M12, with Nut 1
KL-0356-121 Set of Sleeves, Mercedes W210 1
Scope of Delivery: KL-0356-121 Set of Sleeves, Mercedes W210
Part No. Description Qty
KL-0356-1201 Support Sleeve 1
KL-0356-1202 Pressure Piece 1
KL-0356-1203 Pressure Piece 1
KL-0356-1204 Support Sleeve 1
KL-0356-1205 Support Sleeve 1
KL-0356-1206 Pressure Sleeve 1
KL-0356-1207 Tension Segment 2
KL-0356-1208 Mandrel 1
KL-0356-1209 Pressure Piece 1
KL-0356-1105 Support Disc 1
KL-0356-1108 Support Sleeve 1
KL-0356-1211 Pressure Sleeve 1
KL-0356-1212 Pressure Piece 1
KL-0356-1
KL-0356-1
Pulling Device, Mercedes
Suitable for Mercedes W124 and W201.
Intended for the replacement of both front and rear rubber bushes on the suspension
points of the rear subframe.

Advantage: This tool allows the user to replace rubber bushes in situ on the vehicle
without having to remove the rear subframe.
Scope of Delivery:KL-0356-1 Pulling Device, Mercedes
Part No. Description Qty
KL-0356-0001 Housing 1
KL-0014-0014 Axial Bearing 2
KL-0356-0004 Circlip SB42 2
KL-0356-0005 Adaptor Ring 1
KL-0350-0008 Thread Spindle, M10x230mm 1
KL-0356-0007 Knurled Nut 1
KL-0356-0008 Bearing Cover (small) 1
KL-0356-0009 Thrust Piece 1
KL-0356-0010 Spacer Ring 1
KL-0356-0011 Pressure Plate 1
KL-0356-0012 Pressure Plate 1
KL-0350-0009 Hex Shoulder Nut, M10 1

4-48 (184) Copyright GEDORE Automotive GmbH, Germany
