Ford

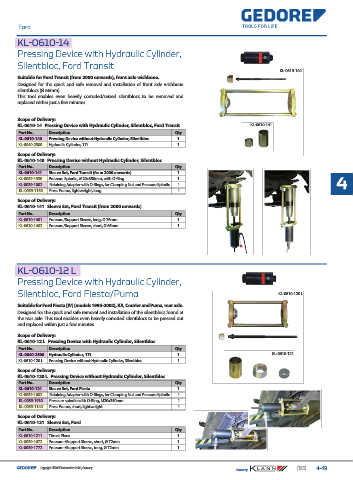

KL-0610-14 KL-0610-14
Pressing Device with Hydraulic Cylinder,
Silentbloc, Ford Transit
KL-0610-140
Suitable for Ford Transit (from 2000 onwards), front axle wishbone.
Designed for the quick and safe removal and installation of front axle wishbone
silentblocs (Ø 66mm).
This tool enables even heavily corroded/seized silentblocs to be removed and
replaced within just a few minutes.

Scope of Delivery:
KL-0610-14 Pressing Device with Hydraulic Cylinder, Silentbloc, Ford Transit KL-0610-141
Part No. Description Qty
KL-0610-140 Pressing Device without Hydraulic Cylinder, Silentbloc 1
KL-0040-2500 Hydraulic Cylinder, 17t 1
Scope of Delivery:
KL-0610-140 Pressing Device without Hydraulic Cylinder, Silentbloc
Part No. Description Qty
KL-0610-141 Sleeve Set, Ford Transit (from 2000 onwards) 1
KL-0039-1930 Pressure Spindle, M20x350mm, with O-Ring 1
KL-0039-1002 Retaining Adaptor with O-Rings, for Clamping Nut and Pressure Spindle 1 4
KL-0039-1150 Press Frame, lightweight, long 1
Scope of Delivery:
KL-0610-141 Sleeve Set, Ford Transit (from 2000 onwards)
Part No. Description Qty
KL-0610-1401 Pressure/Support Sleeve, long, Ø 76mm 1
KL-0610-1402 Pressure/Support Sleeve, short, Ø 65mm 1

KL-0610-12 L KL-0610-12 L
Pressing Device with Hydraulic Cylinder,
Silentbloc, Ford Fiesta/Puma KL-0610-120 L

Suitable for Ford Fiesta [IV] (models 1995-2002), KA, Courier and Puma, rear axle.
Designed for the quick and safe removal and installation of the silentblocs found at
the rear axle. This tool enables even heavily corroded silentblocs to be pressed out
and replaced within just a few minutes.

Scope of Delivery:
KL-0610-12 L Pressing Device with Hydraulic Cylinder, Silentbloc
Part No. Description Qty
KL-0040-2500 Hydraulic Cylinder, 17t 1 KL-0610-121
KL-0610-120 L Pressing Device without Hydraulic Cylinder, Silentbloc 1
Scope of Delivery:
KL-0610-120 L Pressing Device without Hydraulic Cylinder, Silentbloc
Part No. Description Qty
KL-0610-121 Sleeve Set, Ford Fiesta 1
KL-0039-1002 Retaining Adaptor with O-Rings, for Clamping Nut and Pressure Spindle 1
KL-0039-1930 Pressure spindle with O-Ring, M20x350mm 1
KL-0039-1140 Press Frame, short, lightweight 1
Scope of Delivery:
KL-0610-121 Sleeve Set, Ford
Part No. Description Qty
KL-0610-1211 Thrust Piece 1
KL-0039-1672 Pressure-/Support Sleeve, short, Ø 72mm 1
KL-0039-1772 Pressure-/Support Sleeve, long, Ø 72mm 1

Copyright GEDORE Automotive GmbH, Germany (185) 4-49
