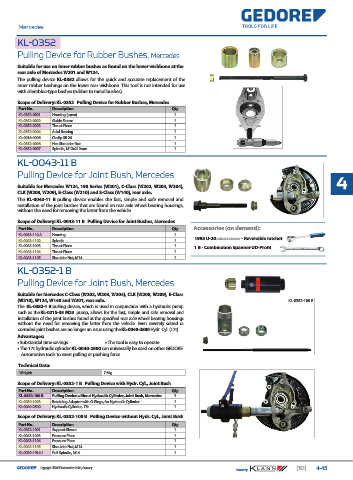

Mercedes

KL-0352 KL-0352
Pulling Device for Rubber Bushes, Mercedes

Suitable for use on inner rubber bushes as found on the lower wishbone at the
rear axle of Mercedes W201 and W124.
The pulling device KL-0352 allows for the quick and accurate replacement of the
inner rubber bushings on the lower rear wishbone. This tool is not intended for use
with silentbloc-type bushes (rubber to metal bushes).
Scope of Delivery: KL-0352 Pulling Device for Rubber Bushes, Mercedes
Part No. Description Qty
KL-0352-0001 Housing (open) 1
KL-0352-0002 Guide Sleeve 1
KL-0352-0003 Thrust Piece 1
KL-0352-0004 Axial Bearing 1
KL-0016-0006 Circlip SB 26 1
KL-0352-0006 Hex Shoulder Nut 1
KL-0352-0007 Spindle, M12x210mm 1

KL-0043-11 B KL-0043-11 B
Pulling Device for Joint Bush, Mercedes
4
Suitable for Mercedes W124, 190 Series (W201), C-Class (W202, W203, W204),
CLK (W208, W209), E-Class (W210) and S-Class (W140), rear axle.
The KL-0043-11 B pulling device enables the fast, simple and safe removal and
installation of the joint bushes that are found on rear axle wheel bearing housings,
without the need for removing the latter from the vehicle.

Scope of Delivery: KL-0043-11 B Pulling Device for Joint Bushes, Mercedes
Part No. Description Qty Accessories (on demand):
KL-0043-110 A Housing 1
KL-0043-1102 Spindle 1 1993 U-20 CODE:1436686 - Reversible ratchet
KL-0043-1003 Thrust Piece 1
1 B - Combination Spanner UD-Profil
KL-0043-1104 Thrust Piece 1
KL-0043-1105 Shoulder Nut, M14 1
KL-0352-1 B KL-0352-1 B
Pulling Device for Joint Bush, Mercedes

Suitable for Mercedes C-Class (W202, W203, W204), CLK (W208, W209), E-Class
(W210), W124, W140 and W201, rear axle. KL-0352-100 B
The KL-0352-1 B pulling device, which is used in conjunction with a hydraulic pump
such as the KL-0215-35 M25 pump, allows for the fast, simple and safe removal and
installation of the joint bushes found at the specified rear axle wheel bearing housings
without the need for removing the latter from the vehicle. Even severely seized or
corroded joint bushes are no longer an issue using the KL-0040-2500 Hydr. Cyl. (17t).
Advantages:
• Substantial time savings. • The tool is easy to operate.
• The 17t hydraulic cylinder KL-0040-2500 can universally be used on other GEDORE
Automotive tools to exert pulling or pushing force.
Technical Data:
Weight: 7.6kg

Scope of Delivery: KL-0352-1 B Pulling Device with Hydr. Cyl., Joint Bush
Part No. Description Qty
KL-0352-100 B Pulling Device without Hydraulic Cylinder, Joint Bush, Mercedes 1
KL-0039-1003 Retaining Adaptor with O-Rings, for Hydraulic Cylinder 1
KL-0040-2500 Hydraulic Cylinder, 17t 1
Scope of Delivery: KL-0352-100 B Pulling Device without Hydr. Cyl., Joint Bush
Part No. Description Qty
KL-0352-1001 Support Sleeve 1
KL-0043-1003 Pressure Piece 1
KL-0043-1104 Pressure Piece 1
KL-0043-1105 Shoulder Nut, M14 1
KL-0039-1914-1 Pull Spindle, M14 1

Copyright GEDORE Automotive GmbH, Germany (181) 4-45
