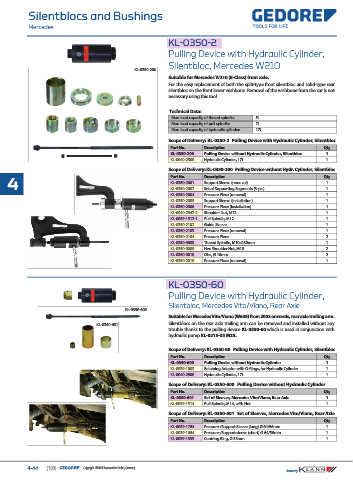

Silentblocs and Bushings
Mercedes

KL-0350-2
KL-0350-2
Pulling Device with Hydraulic Cylinder,
Silentbloc, Mercedes W210
KL-0350-200
Suitable for Mercedes W210 (E-Class) front axle.
For the easy replacement of both the split-type front silentbloc and solid-type rear
silentbloc on the front lower wishbone. Removal of the wishbone from the car is not
necessary using this tool.

Technical Data:
Max. load capacity of thread spindle: 5t
Max. load capacity of pull spindle: 7t
Max. load capacity of hydraulic cylinder: 17t

Scope of Delivery: KL-0350-2 Pulling Device with Hydraulic Cylinder, Silentbloc
Part No. Description Qty
KL-0350-200 Pulling Device without Hydraulic Cylinder, Silentbloc 1
KL-0040-2500 Hydraulic Cylinder, 17t 1
Scope of Delivery: KL-0350-200 Pulling Device without Hydr. Cylinder, Silentbloc
Part No. Description Qty
4 KL-0350-2001 Support Sleeve (removal) 1 1
Set of Supporting Segments (3-pc.)
KL-0350-2002
KL-0350-2004 Pressure Piece (removal) 1
KL-0350-2005 Support Sleeve (installation) 1
KL-0350-2006 Pressure Piece (installation) 1
KL-0040-2542-2 Shoulder Nut, M12 1
KL-0039-1912-1 Pull Spindle, M12 1
KL-0350-2102 Guide Sleeve 1
KL-0350-2103 Pressure Piece (removal) 1
KL-0350-2104 Pressure Piece 2
KL-0350-0008 Thread Spindle, M10x230mm 1
KL-0350-0009 Hex Shoulder Nut, M10 2
KL-0350-0010 Disc, Ø 10mm 2
KL-0350-2010 Pressure Piece (removal) 1

KL-0350-60
KL-0350-60
Pulling Device with Hydraulic Cylinder,
Silentbloc, Mercedes Vito/Viano, Rear Axle
KL-0350-600
Suitable for Mecedes Vito/Viano (W639) from 2003 onwards, rear axle trailing arm.
KL-0350-601 Silentblocs on the rear axle trailing arm can be removed and installed without any
trouble thanks to the pulling device KL-0350-60 which is used in conjunction with
hydraulic pump KL-0215-35 M25.

Scope of Delivery: KL-0350-60 Pulling Device with Hydraulic Cylinder, Silentbloc
Part No. Description Qty
KL-0350-600 Pulling Device without Hydraulic Cylinder 1
KL-0039-1003 Retaining Adaptor with O-Rings, for Hydraulic Cylinder 1
KL-0040-2500 Hydraulic Cylinder, 17t 1
Scope of Delivery: KL-0350-600 Pulling Device without Hydraulic Cylinder
Part No. Description Qty
KL-0350-601 Set of Sleeves, Mercedes Vito/Viano, Rear Axle 1
KL-0039-1914 Pull Spindle, M14, with Nut 1
Scope of Delivery: KL-0350-601 Set of Sleeves, Mercedes Vito/Viano, Rear Axle
Part No. Description Qty
KL-0039-1764 Pressure-/Support Sleeve (long) Ø 64/56mm 1
KL-0039-1664 Pressure-/Support sleeve (short) Ø 64/56mm 1
KL-0039-1333 Centring Ring, Ø 33mm 1

4-44 (180) Copyright GEDORE Automotive GmbH, Germany
