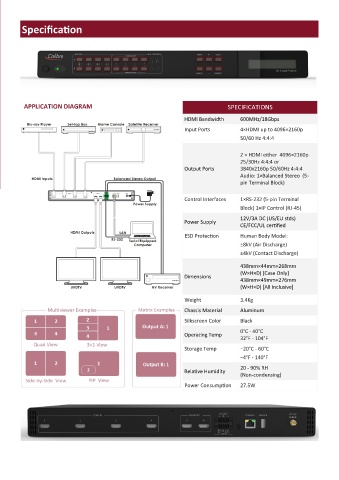

Specification
















         APPLICATION DIAGRAM                                                     SPECIFICATIONS

                                                                  HDMI Bandwidth     600MHz/18Gbps
                                                                  Input Ports        4×HDMI up to 4096×2160p
                                                                                     50/60 Hz 4:4:4

                                                                                     2 × HDMI either  4096×2160p
                                                                                     25/30Hz 4:4:4 or
                                                                  Output Ports       3840x2160p 50/60Hz 4:4:4
                                                                                     Audio: 1×Balanced Stereo  (5-
                                                                                     pin Terminal Block)

                                                                  Control Interfaces   1×RS-232 (5-pin Terminal
                                                                                     Block) 1×IP Control (RJ-45)
                                                                                     12V/3A DC (US/EU stds)
                                                                  Power Supply
                                                                                     CE/FCC/UL certified
                                                                  ESD Protection     Human Body Model:
                                                                                     ±8kV (Air Discharge)
                                                                                     ±4kV (Contact Discharge)

                                                                                     438mm×44mm×268mm
                                                                                     (W×H×D) [Case Only]
                                                                  Dimensions
                                                                                     438mm×49mm×276mm
                                                                                     (W×H×D) [All Inclusive]

                                                                  Weight             3.4Kg

                                                                  Chassis Material   Aluminum
                                                                  Silkscreen Color   Black
                                                                                     0°C - 40°C
                                                                  Operating Temp
                                                                                     32°F - 104°F
                                                                  Storage Temp       −20°C - 60°C
                                                                                     −4°F - 140°F
                                                                                     20 - 90% RH
                                                                  Relative Humidity
                                                                                     (Non-condensing)
                                                                  Power Consumption   27.5W
