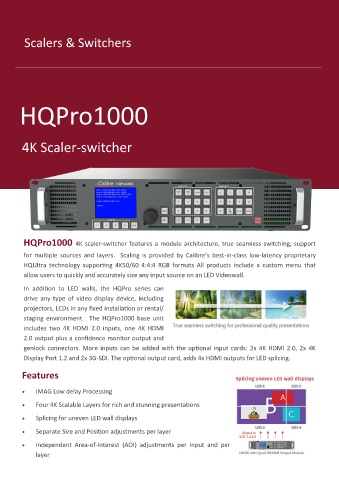

Page 5 - calibre Product Catalogue

Scalers & Switchers

HQPro1000

4K Scaler-switcher

HQPro1000 4K scaler-switcher features a module architecture, true seamless switching, support
for multiple sources and layers. Scaling is provided by Calibre’s best-in-class low-latency proprietary

HQUltra technology supporting 4K50/60 4:4:4 RGB formats All products include a custom menu that
allow users to quickly and accurately size any input source on an LED Videowall.

In addition to LED walls, the HQPro series can
drive any type of video display device, including
projectors, LCDs in any fixed installation or rental/
staging environment. The HQPro1000 base unit
includes two 4K HDMI 2.0 inputs, one 4K HDMI

2.0 output plus a confidence monitor output and
genlock connectors. More inputs can be added with the optional input cards: 2x 4K HDMI 2.0, 2x 4K
Display Port 1.2 and 2x 3G-SDI. The optional output card, adds 4x HDMI outputs for LED splicing.

Features

 IMAG Low delay Processing

 Four 4K Scalable Layers for rich and stunning presentations

 Splicing for uneven LED wall displays

 Separate Size and Position adjustments per layer

 Independent Area-of-Interest (AOI) adjustments per input and per
layer
