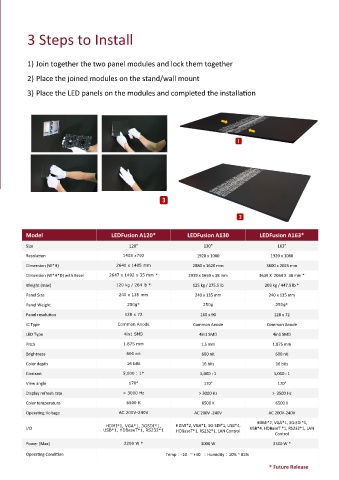

3 Steps to Install

1) Join together the two panel modules and lock them together

2) Place the joined modules on the stand/wall mount

3) Place the LED panels on the modules and completed the installation

Model LEDFusion A120* LEDFusion A130 LEDFusion A163*
120”
Size 130" 163”
1408 x792
Resolution 1920 x 1080 1920 x 1080
2640 x 1485 mm
Dimension (W*H) 2880 x 1620 mm 3600 x 2025 mm
2647 x 1492 x 35 mm *
Dimension (W*H*D) with Bezel 2919 x 1659 x 38 mm 3639 X 2064 X 38 mm *
120 kg / 264 lb *
Weight (max) 125 kg / 275.5 lb 203 kg / 447.5 lb *
240 x 135 mm
Panel Size 240 x 135 mm 240 x 135 mm
250g* 250g 250g*
Panel Weight
128 x 72
Panel resolution 160 x 90 128 x 72
Common Anode
IC Type Common Anode Common Anode
4in1 SMD
LED Type 4in1 SMD 4in1 SMD
1.875 mm
Pitch 1.5 mm 1.875 mm
600 nit
Brightness 600 nit 600 nit
16 bits
Color depth 16 bits 16 bits
5,000 : 1*
Contrast 5,000 : 1 5,000 : 1
170°
View angle 170° 170°
> 3000 Hz
Display refresh rate > 3000 Hz > 3500 Hz
6500 K
Color temperature 6500 K 6500 K
AC 200V-240V
Operating Voltage AC 200V -240V AC 200V-240V
HDMI*2, VGA*1, 3G-SDI*1,
USB*1, HDBaseT*1, RS232*1 HDMI*2, VGA*1, 3G-SDI*1, USB*4,
HDMI*1, VGA*1, 3GSDI*1,
I/O USB*4, HDBaseT *1, RS232*1, LAN
HDBaseT*1, RS232*1, LAN Control
Control
2200 W *
Power (Max) 3000 W 3300 W *
Operating Condition Temp：-10℃ ~ +40℃；Humidity：10% ~ 85%
* Future Release
