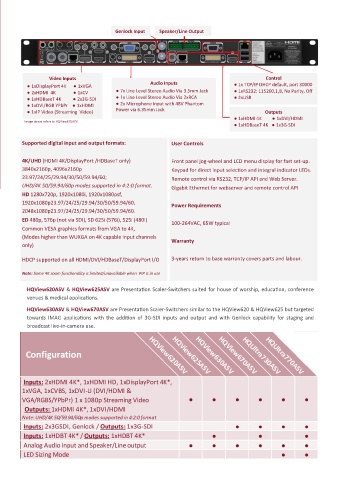

Page 8 - calibre Product Catalogue

Genlock Input Speaker/Line Output

Video Inputs Control
● 1xDisplayPort 4K ● 1xVGA Audio Inputs ● 1x TCP/IP DHCP default, port 30000
● 2xHDMI 4K ● 1xCV ● 7x Line Level Stereo Audio Via 3.5mm Jack ● 1xRS232: 115200,1,8, No Parity, Off
● 1xHDBaseT 4K ● 2x3G-SDI ● 1x Line Level Stereo Audio Via 2xRCA ● 2xUSB
● 1xDVI/RGB YPbPr ● 1xHDMI ● 2x Microphone Input with 48V Phantom
● 1xIP Video (Streaming Video) Power via 6.35mm Jack Outputs
● 1xHDMI 4K ● 1xDVI/HDMI
Image above refers to HQView670ASV,
● 1xHDBaseT 4K ● 1x3G-SDI

Supported digital input and output formats: User Controls

4K/UHD (HDMI 4K/DisplayPort /HDBaseT only) Front panel jog-wheel and LCD menu display for fast set-up.
3840x2160p, 4096x2160p Keypad for direct input selection and integral indicator LEDs.
23.97/24/25/29.94/30/50/59.94/60; Remote control via RS232, TCP/IP API and Web Server.
UHD/4K 50/59.94/60p modes supported in 4:2:0 format. Gigabit Ethernet for webserver and remote control API
HD 1280x720p, 1920x1080i, 1920x1080psf,
1920x1080p23.97/24/25/29.94/30/50/59.94/60,
Power Requirements
2048x1080p23.97/24/25/29.94/30/50/59.94/60.

ED 480p, 576p (not via SDI), SD 625i (576i), 525i (480i)
100-264VAC, 65W typical
Common VESA graphics formats from VGA to 4K,

(Modes higher than WUXGA on 4K capable input channels
Warranty
only)

HDCP supported on all HDMI/DVI/HDBaseT/DisplayPort I/O 3-years return to base warranty covers parts and labour.

Note: Some 4K zoom functionality is limited/unavailable when PIP is in use

HQView620ASV & HQView625ASV are Presentation Scaler-Switchers suited for house of worship, education, conference
venues & medical applications.
HQView630ASV & HQView670ASV are Presentation Scaler-Switchers similar to the HQView620 & HQView625 but targeted
towards IMAG applications with the addition of 3G-SDI inputs and output and with Genlock capability for staging and
broadcast live-in-camera use.
