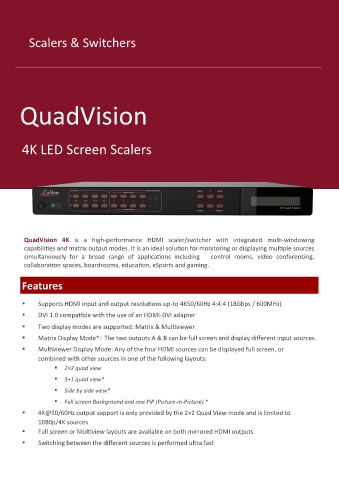

Page 9 - calibre Product Catalogue

Scalers & Switchers

QuadVision

4K LED Screen Scalers

QuadVision 4K is a high-performance HDMI scaler/switcher with integrated multi-windowing
capabilities and matrix output modes. It is an ideal solution for monitoring or displaying multiple sources
simultaneously for a broad range of applications including control rooms, video conferencing,
collaboration spaces, boardrooms, education, eSports and gaming.

Features

￭ Supports HDMI input and output resolutions up-to 4K50/60Hz 4:4:4 (18Gbps / 600MHz)
￭ DVI 1.0 compatible with the use of an HDMI-DVI adapter
￭ Two display modes are supported: Matrix & Multiviewer

￭ Matrix Display Mode*: The two outputs A & B can be full screen and display different input sources.
￭ Multiviewer Display Mode: Any of the four HDMI sources can be displayed full screen, or

combined with other sources in one of the following layouts:
￭ 2×2 quad view

￭ 3+1 quad view*
￭ Side by side view*

￭ Full screen Background and one PiP (Picture-in-Picture) *
￭ 4K@50/60Hz output support is only provided by the 2×2 Quad View mode and is limited to

1080p/4K sources
￭ Full screen or Multiview layouts are available on both mirrored HDMI outputs
￭ Switching between the different sources is performed ultra fast
