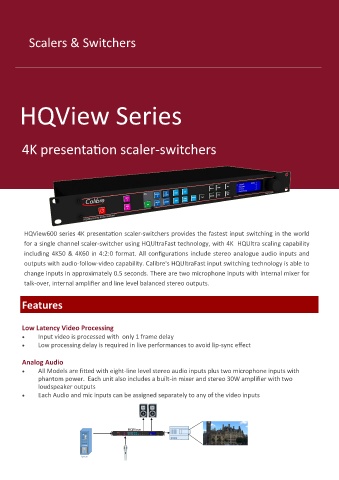

Page 7 - calibre Product Catalogue

Scalers & Switchers

HQView Series

4K presentation scaler-switchers

HQView600 series 4K presentation scaler-switchers provides the fastest input switching in the world

for a single channel scaler-switcher using HQUltraFast technology, with 4K HQUltra scaling capability
including 4K50 & 4K60 in 4:2:0 format. All configurations include stereo analogue audio inputs and
outputs with audio-follow-video capability. Calibre's HQUltraFast input switching technology is able to
change inputs in approximately 0.5 seconds. There are two microphone inputs with internal mixer for

talk-over, internal amplifier and line level balanced stereo outputs.

Features

Low Latency Video Processing
 Input video is processed with only 1 frame delay
 Low processing delay is required in live performances to avoid lip-sync effect

Analog Audio
 All Models are fitted with eight-line level stereo audio inputs plus two microphone inputs with
phantom power. Each unit also includes a built-in mixer and stereo 30W amplifier with two
loudspeaker outputs
 Each Audio and mic inputs can be assigned separately to any of the video inputs
