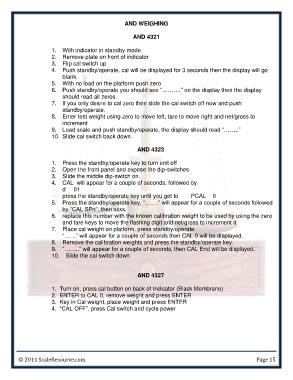

Page 15 - scales manual v1014 web

AND WEIGHING

AND 4321

1. With indicator in standby mode
2. Remove plate on front of indicator
3. Flip cal switch up
4. Push standby/operate, cal will be displayed for 3 seconds then the display will go

blank.
5. With no load on the platform push zero
6. Push standby/operate you should see “……….” on the display then the display

should read all zeros.
7. If you only desire to cal zero then slide the cal switch off now and push

standby/operate.
8. Enter test weight using zero to move left, tare to move right and net/gross to

increment
9. Load scale and push standby/operate, the display should read “……..”
10. Slide cal switch back down.

AND 4323

1. Press the standby/operate key to turn unit off
2. Open the front panel and expose the dip-switches
3. Slide the middle dip-switch on.
4. CAL will appear for a couple of seconds, followed by

d 01
press the standby/operate key until you get to PCAL 0
5. Press the standby/operate key, “…….” will appear for a couple of seconds followed
by “CAL SPn”, then xxxx.
6. replace this number with the known calibration weight to be used by using the zero
and tare keys to move the flashing digit and net/gross to increment it.
7. Place cal weight on platform, press standby/operate.
“……” will appear for a couple of seconds then CAL 0 will be displayed.
8. Remove the calibration weights and press the standby/operate key.
9. “……..” will appear for a couple of seconds, then CAL End will be displayed.
10. Slide the cal switch down.

AND 4327

1. Turn on, press cal button on back of Indicator (Black Membrane)
2. ENTER to CAL 0, remove weight and press ENTER
3. Key in Cal weight, place weight and press ENTER
4. “CAL OFF”, press Cal switch and cycle power
