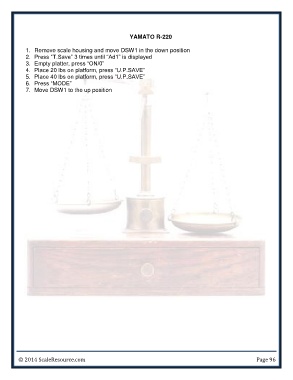

YAMATO R-220
1. Remove scale housing and move DSW1 in the down position
2. Press “T.Save” 3 times until “Ad1” is displayed
3. Empty platter, press “ON/0”
4. Place 20 lbs on platform, press “U.P.SAVE”
5. Place 40 lbs on platform, press “U.P.SAVE”
6. Press “MODE”
7. Move DSW1 to the up position
© 2014 ScaleResource.com Page 96
1. Remove scale housing and move DSW1 in the down position
2. Press “T.Save” 3 times until “Ad1” is displayed
3. Empty platter, press “ON/0”
4. Place 20 lbs on platform, press “U.P.SAVE”
5. Place 40 lbs on platform, press “U.P.SAVE”
6. Press “MODE”
7. Move DSW1 to the up position
