RSLinx
File View Communications Station DDE/OPC Security Window Help
RS Who

RSWho-1
Autobrowse Refresh Browsing-node 1 found
Refresh
– Workstation, ADMIN-PC
+ Linx Gateways, Ethernet
– Computer, DH-485 00 01
00, Workstation, DF1-COM3 DF1-COM3 PLC
Workstation
01, MicroLogix 1000, PLC

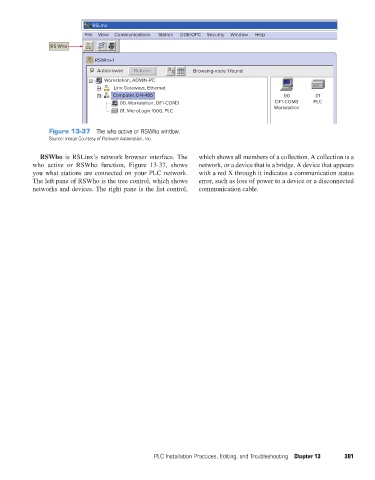

Figure 13-37 The who active or RSWho window.
Source: Image Courtesy of Rockwell Automation, Inc.

RSWho is RSLinx’s network browser interface. The which shows all members of a collection. A collection is a
who active or RSWho function, Figure 13-37, shows network, or a device that is a bridge. A device that appears
you what stations are connected on your PLC network. with a red X through it indicates a communication status
The left pane of RSWho is the tree control, which shows error, such as loss of power to a device or a disconnected
networks and devices. The right pane is the list control, communication cable.

PLC Installation Practices, Editing, and Troubleshooting Chapter 13 301
