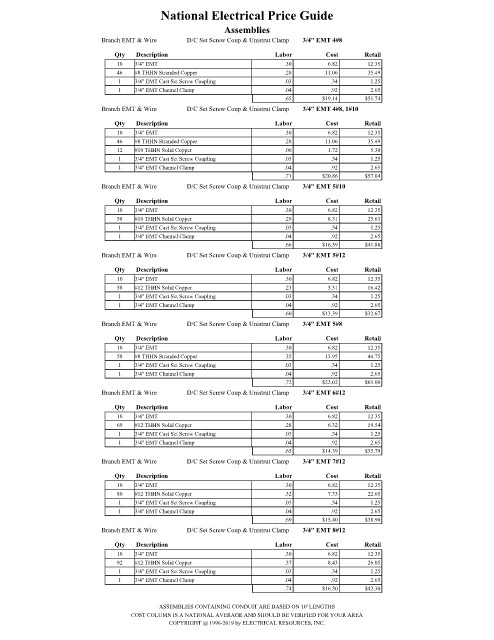

Page 1425 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Set Screw Coup & Unistrut Clamp 3/4" EMT 4#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT Channel Clamp .04 .92 2.65
.65 $19.14 $51.74
Branch EMT & Wire D/C Set Screw Coup & Unistrut Clamp 3/4" EMT 4#8, 1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
12 #10 THHN Solid Copper .06 1.72 5.30
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT Channel Clamp .04 .92 2.65
.71 $20.86 $57.04
Branch EMT & Wire D/C Set Screw Coup & Unistrut Clamp 3/4" EMT 5#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #10 THHN Solid Copper .29 8.31 25.63
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT Channel Clamp .04 .92 2.65
.66 $16.39 $41.88
Branch EMT & Wire D/C Set Screw Coup & Unistrut Clamp 3/4" EMT 5#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #12 THHN Solid Copper .23 5.31 16.42
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT Channel Clamp .04 .92 2.65
.60 $13.39 $32.67
Branch EMT & Wire D/C Set Screw Coup & Unistrut Clamp 3/4" EMT 5#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #8 THHN Stranded Copper .35 13.95 44.75
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT Channel Clamp .04 .92 2.65
.72 $22.02 $61.00
Branch EMT & Wire D/C Set Screw Coup & Unistrut Clamp 3/4" EMT 6#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
69 #12 THHN Solid Copper .28 6.32 19.54
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT Channel Clamp .04 .92 2.65
.65 $14.39 $35.79
Branch EMT & Wire D/C Set Screw Coup & Unistrut Clamp 3/4" EMT 7#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
80 #12 THHN Solid Copper .32 7.33 22.65
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT Channel Clamp .04 .92 2.65
.69 $15.40 $38.90
Branch EMT & Wire D/C Set Screw Coup & Unistrut Clamp 3/4" EMT 8#12

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
92 #12 THHN Solid Copper .37 8.43 26.05
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT Channel Clamp .04 .92 2.65
.74 $16.50 $42.30

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
