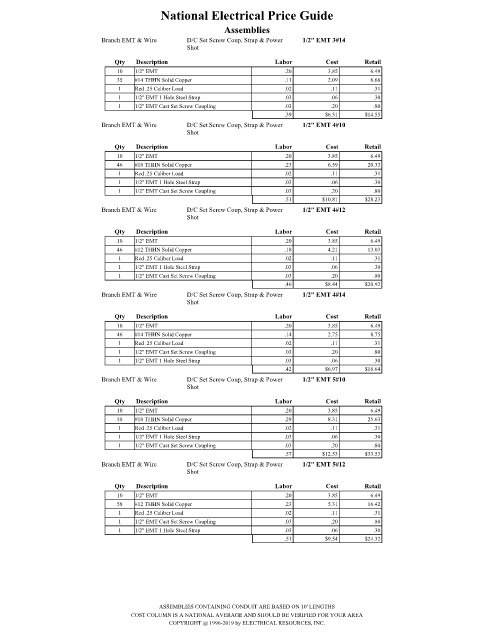

Page 1427 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 3#14
Shot
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #14 THHN Solid Copper .11 2.09 6.66
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.39 $6.31 $14.55
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 4#10
Shot
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #10 THHN Solid Copper .23 6.59 20.33
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.51 $10.81 $28.23
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 4#12
Shot
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #12 THHN Solid Copper .18 4.21 13.03
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.46 $8.44 $20.92
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 4#14
Shot
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #14 THHN Solid Copper .14 2.75 8.75
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
.42 $6.97 $16.64
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 5#10
Shot

Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #10 THHN Solid Copper .29 8.31 25.63
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.57 $12.53 $33.53
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 5#12
Shot

Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #12 THHN Solid Copper .23 5.31 16.42
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
.51 $9.54 $24.32

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
