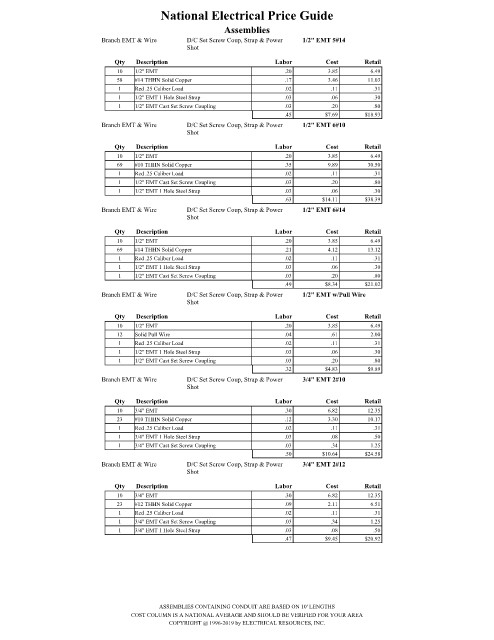

Page 1428 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 5#14
Shot
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #14 THHN Solid Copper .17 3.46 11.03
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.45 $7.69 $18.93
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 6#10
Shot
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
69 #10 THHN Solid Copper .35 9.89 30.50
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
.63 $14.11 $38.39
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT 6#14
Shot
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
69 #14 THHN Solid Copper .21 4.12 13.12
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.49 $8.34 $21.02
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 1/2" EMT w/Pull Wire
Shot
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Cast Set Screw Coupling .03 .20 .80
.32 $4.83 $9.89
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 2#10
Shot

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
23 #10 THHN Solid Copper .12 3.30 10.17
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.50 $10.64 $24.58
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 2#12
Shot

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
23 #12 THHN Solid Copper .09 2.11 6.51
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.47 $9.45 $20.92

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
