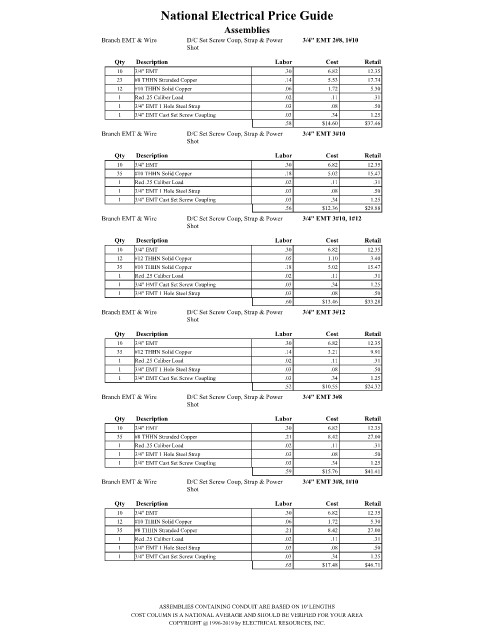

Page 1429 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 2#8, 1#10
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
23 #8 THHN Stranded Copper .14 5.53 17.74
12 #10 THHN Solid Copper .06 1.72 5.30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.58 $14.60 $37.46
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 3#10
Shot

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #10 THHN Solid Copper .18 5.02 15.47
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.56 $12.36 $29.88
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 3#10, 1#12
Shot

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #12 THHN Solid Copper .05 1.10 3.40
35 #10 THHN Solid Copper .18 5.02 15.47
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.60 $13.46 $33.28
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 3#12
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #12 THHN Solid Copper .14 3.21 9.91
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.52 $10.55 $24.32
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 3#8
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
35 #8 THHN Stranded Copper .21 8.42 27.00
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.59 $15.76 $41.41
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 3#8, 1#10
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 #10 THHN Solid Copper .06 1.72 5.30
35 #8 THHN Stranded Copper .21 8.42 27.00
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.65 $17.48 $46.71

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
