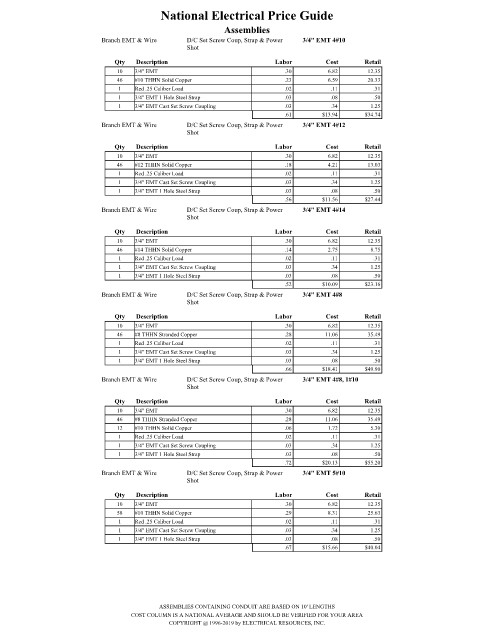

Page 1430 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 4#10
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #10 THHN Solid Copper .23 6.59 20.33
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
.61 $13.94 $34.74
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 4#12
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #12 THHN Solid Copper .18 4.21 13.03
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.56 $11.56 $27.44
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 4#14
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #14 THHN Solid Copper .14 2.75 8.75
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.52 $10.09 $23.16
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 4#8
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.66 $18.41 $49.90
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 4#8, 1#10
Shot

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
12 #10 THHN Solid Copper .06 1.72 5.30
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.72 $20.13 $55.20
Branch EMT & Wire D/C Set Screw Coup, Strap & Power 3/4" EMT 5#10
Shot
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #10 THHN Solid Copper .29 8.31 25.63
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Cast Set Screw Coupling .03 .34 1.25
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.67 $15.66 $40.04

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
