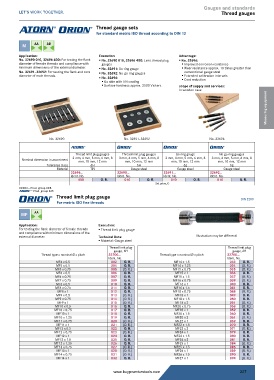

Gauges and standards
Thread gauges

Thread gauge sets
for standard metric ISO thread according to DIN 13

M

Application: Execution: Advantage:
No. 32690 010, 32696 400: For testing the flank ƒ No. 32690 010, 32696 400: Limit thread plug ƒ No. 32696:
diameter of female threads and compliance with gauges ƒ Improved corrosion resistance
minimum dimensions of the external diameter. ƒ No. 32691: Go ring gauge ƒ Wear resistance approx. 10 times greater than
No. 32691–32692: For testing the flank and core ƒ No. 32692: No-go ring gauges conventional gauge steel
diameter of male threads. ƒ No. 32696: ƒ Extended calibration intervals
ƒ Go side with TiN coating ƒ Cost reduction
ƒ Surface hardness approx. 2500 Vickers scope of supply and services:
In wooden case
Measuring equipment

No. 32690 No. 32691–32692 No. 32696

Thread limit plug gauges Thread limit plug gauges Go ring gauge No-go ring gauges
Nominal dimension in assortment 3 mm, 4 mm, 5 mm, 6 mm, 8 3 mm, 4 mm, 5 mm, 6 mm, 8 3 mm, 4 mm, 5 mm, 6 mm, 8 3 mm, 4 mm, 5 mm, 6 mm, 8
mm, 10 mm, 12 mm
mm, 10 mm, 12 mm
mm, 10 mm, 12 mm
mm, 10 mm, 12 mm
Tolerance class 6H 6H 6g 6g
Material TiN Gauge steel Gauge steel Gauge steel
32696... 32690... 32691... 32692...
Ident. No. Ident. No. Ident. No. Ident. No.
400 O. R. 010 O. R. 010 O. R. 010 O. R.
Set price, €
ORION = Prod. group 3DB
a = Prod. group 325
Thread limit plug gauge
For metric ISO fine threads DIN 2280
MF
Application: Execution:
For testing the flank diameter of female threads ƒ Thread limit plug gauge
and compliance with minimum dimensions of the
external diameter. Technical Data: Illustration may be different!
ƒ Material: Gauge steel
Thread limit plug Thread limit plug
gauge, 6H gauge, 6H
Thread type x nominal Ø x pitch 32700... Thread type x nominal Ø x pitch 32700...
Ident. No. Ident. No.
MF4 x 0.5 002 O. R. MF14 x 1.5 033 O. R.
MF5 x 0.5 004 O. R. MF14 x 1.25 034 (O. R.)
MF5 x 0.75 005 (O. R.) MF15 x 0.75 035 (O. R.)
MF6 x 0.5 006 O. R. MF15 x 1 036 O. R.
MF6 x 0.75 007 O. R. MF15 x 1.5 037 (O. R.)
MF7 x 0.75 009 O. R. MF16 x 0.75 039 (O. R.)
MF8 x 0.5 010 O. R. MF16 x 1 040 O. R.
MF8 x 0.75 011 O. R. MF16 x 1.5 041 O. R.
MF8 x 1 012 O. R. MF18 x 0.75 048 (O. R.)
MF9 x 0.5 013 (O. R.) MF18 x 1 049 O. R.
MF9 x 0.75 014 (O. R.) MF18 x 1.5 050 O. R.
MF9 x 1 015 (O. R.) MF18 x 2 051 (O. R.)
MF10 x 0.5 016 O. R. MF20 x 0.75 058 (O. R.)
MF10 x 0.75 017 O. R. MF20 x 1 059 O. R.
MF10 x 1 018 O. R. MF20 x 1.5 060 O. R.
MF10 x 1.25 019 O. R. MF20 x 2 061 (O. R.)
MF11 x 0.75 020 (O. R.) MF22 x 1 069 O. R.
MF11 x 1 021 (O. R.) MF22 x 1.5 070 O. R.
MF12 x 0.5 022 O. R. MF22 x 2 071 (O. R.)
MF12 x 0.75 023 (O. R.) MF24 x 1 079 O. R.
MF12 x 1 024 O. R. MF24 x 1.5 080 O. R.
MF12 x 1.5 025 O. R. MF24 x 2 081 O. R.
MF12 x 1.25 026 O. R. MF25 x 1 084 (O. R.)
MF13 x 0.75 027 (O. R.) MF25 x 1.5 085 O. R.
MF13 x 1 028 (O. R.) MF26 x 1 089 (O. R.)
MF14 x 0.75 031 (O. R.) MF26 x 1.5 090 O. R.
MF14 x 1 032 O. R. MF27 x 1 094 (O. R.)
