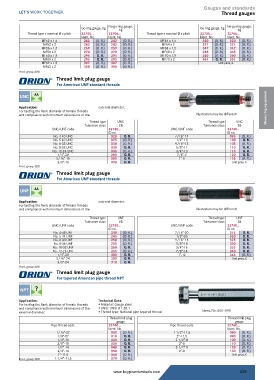

Page 229 - Buy Premium Tools ORION Catalogue

Gauges and standards
Thread gauges

Go ring gauge, 6g No-go ring gauge, Go ring gauge, 6g No-go ring gauge,
6g
6g
Thread type x nominal Ø x pitch 32705... 32706... Thread type x nominal Ø x pitch 32705... 32706...
Ident. No. Ident. No. Ident. No. Ident. No.
MF52 x 1.5 242 (O. R.) 242 (O. R.) MF64 x 1.5 320 (O. R.) 320 (O. R.)
MF52 x 2 243 (O. R.) 243 (O. R.) MF64 x 2 321 (O. R.) 321 (O. R.)
MF56 x 1.5 269 (O. R.) 269 (O. R.) MF68 x 1.5 347 (O. R.) 347 (O. R.)
MF56 x 2 270 (O. R.) 270 (O. R.) MF68 x 2 348 (O. R.) 348 (O. R.)
MF60 x 1.5 294 O. R. 294 (O. R.) MF70 x 1.5 360 (O. R.) 360 (O. R.)
MF60 x 2 295 O. R. 295 (O. R.) MF70 x 2 361 O. R. 361 (O. R.)
MF62 x 1.5 307 (O. R.) 307 (O. R.) Unit price, €
MF62 x 2 308 (O. R.) 308 (O. R.)
Prod. group 3DB
Thread limit plug gauge
For American UNF standard threads
UNC

Application: external diameter. Measuring equipment
For testing the flank diameter of female threads
and compliance with minimum dimensions of the Illustration may be different!
Thread type UNC Thread type UNC
Tolerance class 2B Tolerance class 2B
UNC/UNF code 32730... UNC/UNF code 32730...
ID no. ID no.
No. 4-40 UNC 020 O. R. 7/16”-14 095 (O. R.)
No. 5-40 UNC 025 (O. R.) 1/2”-13 100 O. R.
No. 6-32 UNC 030 (O. R.) 9/16”-12 105 (O. R.)
No. 8-32 UNC 035 O. R. 5/8”-11 110 O. R.
No. 12-24 UNC 045 (O. R.) 3/4”-10 115 O. R.
1/4”-20 080 O. R. 7/8”-9 120 O. R.
5/16”-18 085 O. R. 1”-8 125 (O. R.)
3/8”-16 090 O. R. Unit price, €
Prod. group 3DB
Thread limit plug gauge
For American UNF standard threads

UNF

Application: external diameter.
For testing the flank diameter of female threads
and compliance with minimum dimensions of the Illustration may be different!
Thread type UNF Thread type UNF
Tolerance class 2B Tolerance class 2B
UNC/UNF code 32730... UNC/UNF code 32730...
ID no. ID no.
No. 4-48 UNF 240 (O. R.) 7/16”-20 315 O. R.
No. 5-44 UNF 245 (O. R.) 1/2”-20 320 O. R.
No. 6-40 UNF 250 (O. R.) 9/16”-18 325 O. R.
No. 8-36 UNF 255 (O. R.) 5/8”-18 330 O. R.
No. 10-32 UNF 260 O. R. 3/4”-16 335 O. R.
No. 12-28 UNF 265 (O. R.) 7/8”-14 340 O. R.
1/4”-28 300 O. R. 1”-12 345 (O. R.)
5/16”-24 305 O. R. Unit price, €
3/8”-24 310 O. R.
Prod. group 3DB
Thread limit plug gauge
For tapered American pipe thread NPT

NPT ?

Application: Technical Data:
For testing the flank diameter of female threads ƒ Material: Gauge steel
and compliance with minimum dimensions of the ƒ ANSI: ANSI B 1.20.1 Ident. No. 005–090
external diameter. ƒ Thread type: National pipe tapered thread
Thread limit plug Thread limit plug
gauge gauge
Pipe thread code 32740... Pipe thread code 32740...
Ident. No. Ident. No.
1/16”-27 005 (O. R.) 1 1/2”-11.5 080 (O. R.)
1/8”-27 010 O. R. 2”-11.5 090 (O. R.)
1/4”-18 020 O. R. 2 1/2”-8 100 (O. R.)
3/8”-18 030 O. R. 3”-8 110 (O. R.)
1/2”-14 040 O. R. 3 1/2”-8 120 (O. R.)
3/4”-14 050 O. R. 4”-8 130 (O. R.)
1”-11.5 060 (O. R.) Unit price, €
Prod. group 3DB 1 1/4”-11.5 070 (O. R.)
