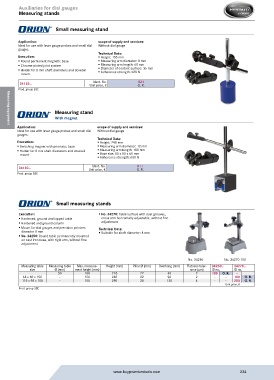

Page 234 - Buy Premium Tools ORION Catalogue

Auxiliaries for dial gauges
Measuring stands

Small measuring stand

Application: scope of supply and services:
Ideal for use with lever gauge probes and small dial Without dial gauge
gauges.
Technical Data:
Execution: ƒ Height: 155 mm
ƒ Round permanent magnetic base ƒ Measuring arm diameter: 8 mm
ƒ Chrome-plated joint system ƒ Measuring arm length: 60 mm
ƒ Holder for 8 mm shaft diameters and dovetail ƒ Diameter of contact surface: 35 mm
ƒ Adherence strength: 220 N
mount
021
Ident. No.
34130... Unit price, € O. R.
Prod. group 3BE

Measuring stand
With magnet
Application: scope of supply and services:
Measuring equipment
Ideal for use with lever gauge probes and small dial Without dial gauge
gauges.
Technical Data:
Execution: ƒ Height: 240 mm
ƒ Switching magnet with prismatic base ƒ Measuring arm diameter: 12 mm
ƒ Holder for 8 mm shaft diameters and dovetail ƒ Measuring arm length: 180 mm
mount ƒ Base size: 58 x 50 x 65 mm
ƒ Adherence strength: 650 N
Ident. No.
011
34160... Unit price, € O. R.
Prod. group 3BE

Small measuring stands

Execution: ƒ No. 34270: Table surface with dust grooves,
ƒ Hardened, ground and lapped table cross arm horizontally adjustable, without fine
ƒ Hardened and ground column adjustment
ƒ Mount for dial gauges and precision pointers Technical Data:
diameter 8 mm ƒ Suitable for shaft diameter: 8 mm
ƒ No. 34250: Round table permanently mounted
on cast iron base, with rigid arm, without fine
adjustment

No. 34250 No. 34270 100
Measuring table Measuring table Max. measure- Height (mm) Pillar Ø (mm) Overhang (mm) Flatness toler- 34250... 34270...
size Ø (mm) ment height (mm) ance (µm) ID no. ID no.
- 50 100 210 22 49 2 100 O. R. - -
68 x 60 x 150 - 150 260 22 90 2 - - 100 O. R.
115 x 98 x 150 - 150 290 28 130 4 - - 200 O. R.
Unit price, €
Prod. group 3BE
