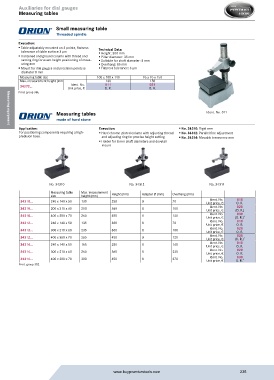

Page 235 - Buy Premium Tools ORION Catalogue

Auxiliaries for dial gauges
Measuring tables

Small measuring table
Threaded spindle
Execution:
ƒ Table adjustably mounted on 3 points, flatness Technical Data:
tolerance of table surface 3 µm ƒ Height: 300 mm
ƒ Hardened and ground column with thread and ƒ Pillar diameter: 35 mm
setting ring for exact height positioning of meas- ƒ Suitable for shaft diameter: 8 mm
uring arm ƒ Overhang: 85 mm
ƒ Mount for dial gauges and precision pointers ƒ Flatness tolerance: 3 µm
diameter 8 mm
Measuring table size 100 x 100 x 140 95 x 95 x 150
Max. measurement height (mm) 140 150
011
021
Ident. No.
34272... Unit price, € O. R. O. R.
Prod. group 3BE

Measuring tables Ident. No. 011
made of hard stone

Measuring equipment
Application: Execution: ƒ No. 34310: Rigid arm
For positioning components requiring a high- ƒ Hard chrome-plated column with adjusting thread ƒ No. 34312: Parallel fine adjustment
precision base. and adjusting ring for precise height setting ƒ No. 34314: Movable transverse arm
ƒ Holder for 8 mm shaft diameters and dovetail
mount

No. 34310 No. 34312 No. 34314
Measuring table Max. measurement Height (mm) Adapter Ø (mm) Overhang (mm)
size height (mm)
010
Ident. No.
34310... 240 x 140 x 50 130 280 8 70 Unit price, € O. R.
Ident. No.
020
34310... 300 x 210 x 60 200 360 8 100 Unit price, € (O. R.)
030
Ident. No.
34310... 400 x 300 x 70 260 450 8 120 Unit price, € (O. R.) +
010
Ident. No.
34312... 240 x 140 x 50 135 280 8 70 Unit price, € O. R.
020
Ident. No.
34312... 300 x 210 x 60 235 360 8 100 Unit price, € O. R.
030
Ident. No.
34312... 400 x 300 x 70 265 450 8 120 Unit price, € (O. R.) +
010
Ident. No.
34314... 240 x 140 x 50 165 280 8 160 Unit price, € O. R.
020
Ident. No.
34314... 300 x 210 x 60 260 360 8 225 Unit price, € O. R.
030
Ident. No.
34314... 400 x 300 x 70 300 450 8 270 Unit price, € O. R. +
Prod. group 3BE

www.buypremiumtools.com 235
