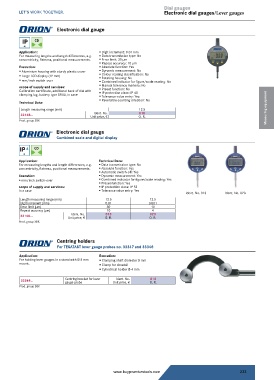

P. 233
Dial gauges
Electronic dial gauges/Lever gauges
Electronic dial gauge
Application: Digit increment: 0.01 mm
For measuring lengths and length differences, e.g. Data transmission type: No
concentricity, flatness, positional measurements. Error limit: 30 µm
Repeat accuracy: 10 µm
Execution: Absolute function: Yes
Aluminium housing with sturdy plastic cover Dynamic measurement: No
Large LCD display (12 mm) Colour reading classification: No
Rotating housing: No
mm/inch switch-over Combined indicator for figure/scale reading: No
scope of supply and services: Manual tolerance markers: No
Calibration certificate, additional back of dial with Preset function: No
IP protection class: IP 40
clamping lug, battery type SR44, in case Tolerance value entry: Yes
Technical Data: Reversible counting direction: No
Length measuring range (mm) 12.5 Measuring equipment
010
Ident. No.
33168... Unit price, € O. R.
Prod. group 3BK
Electronic dial gauge
Combined scale and digital display
52
Application: Technical Data:
For measuring lengths and length differences, e.g. Data transmission type: No
concentricity, flatness, positional measurements. Absolute function: Yes
Automatic switch-off: Yes
Execution: Dynamic measurement: Yes
mm/inch switch-over Combined indicator for figure/scale reading: Yes
Preset function: Yes
scope of supply and services: IP protection class: IP 52
In a case Tolerance value entry: Yes
Ident. No. 013 Ident. No. 023
Length measuring range (mm) 12.5 12.5
Digit increment (mm) 0.01 0.001
Error limit (µm) 30 10
Repeat accuracy (µm) 10 4
Ident. No.
023
013
33168... Unit price, € O. R. O. R.
Prod. group 3BK
Centring holders
For TESATAST lever gauge probes no. 33347 and 33348
Application: Execution:
For holding lever gauges in a stand with Ø 8 mm Clamping shaft diameter 8 mm
mount. Clamp for dovetail
Cylindrical holder Ø 4 mm
010
Ident. No.
33349... Centring bracket for lever Unit price, € O. R.
gauge probe
Prod. group 3BK
