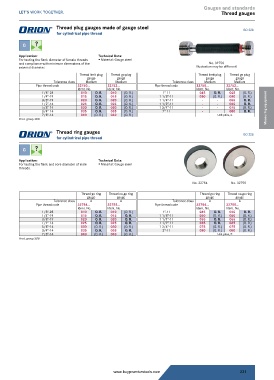

P. 231
Gauges and standards
Thread gauges
Thread plug gauges made of gauge steel ISO 228
for cylindrical pipe thread
G ?
Application: Technical Data:
For testing the flank diameter of female threads Material: Gauge steel
and compliance with minimum dimensions of the No. 32750
external diameter. Illustration may be different!
Thread limit plug Thread go plug Thread limit plug Thread go plug
gauge gauge gauge gauge
Tolerance class Medium Medium Tolerance class Medium Medium
Pipe thread code 32750... 32752... Pipe thread code 32750... 32752...
Ident. No. Ident. No. Ident. No. Ident. No.
1/8”-28 010 O. R. 010 (O. R.) 1”-11 045 O. R. 045 (O. R.)
1/4”-19 015 O. R. 015 (O. R.) 1 1/8”-11 050 (O. R.) 050 (O. R.)
3/8”-19 020 O. R. 020 (O. R.) 1 1/4”-11 - - 055 O. R.
1/2”-14 025 O. R. 025 (O. R.) 1 1/2”-11 - - 065 O. R.
5/8”-14 030 O. R. 030 (O. R.) 1 3/4”-11 - - 075 (O. R.) Measuring equipment
3/4”-14 035 O. R. 035 (O. R.) 2”-11 - - 080 O. R.
7/8”-14 040 (O. R.) 040 (O. R.) Unit price, €
Prod. group 3DB
Thread ring gauges
for cylindrical pipe thread ISO 228
G ?
Application: Technical Data:
For testing the flank and core diameter of male Material: Gauge steel
threads.
No. 32754 No. 32755
Thread go ring Thread no-go ring Thread go ring Thread no-go ring
gauge gauge gauge gauge
Tolerance class A A Tolerance class A A
Pipe thread code 32754... 32755... Pipe thread code 32754... 32755...
Ident. No. Ident. No. Ident. No. Ident. No.
1/8”-28 010 O. R. 010 (O. R.) 1”-11 045 O. R. 045 O. R.
1/4”-19 015 O. R. 015 O. R. 1 1/8”-11 050 (O. R.) 050 (O. R.)
3/8”-19 020 O. R. 020 O. R. 1 1/4”-11 055 O. R. 055 (O. R.)
1/2”-14 025 O. R. 025 O. R. 1 1/2”-11 065 O. R. 065 (O. R.)
5/8”-14 030 (O. R.) 030 (O. R.) 1 3/4”-11 075 (O. R.) 075 (O. R.)
3/4”-14 035 O. R. 035 O. R. 2”-11 080 (O. R.) 080 (O. R.)
7/8”-14 040 (O. R.) 040 (O. R.) Unit price, €
Prod. group 3DB
