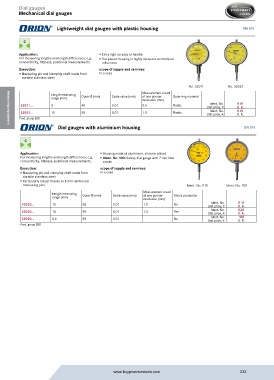

Page 232 - Buy Premium Tools ORION Catalogue

Dial gauges
Mechanical dial gauges

Lightweight dial gauges with plastic housing DIN 878

Application: ƒ Extra light so easy to handle
For measuring lengths and length differences, e.g. ƒ The plastic housing is highly resistant to chemical
concentricity, flatness, positional measurements. influences
Execution: scope of supply and services:
ƒ Measuring pin and clamping shaft made from In a case
durable stainless steel
No. 33011 No. 33037
Length measuring Outer Ø (mm) Scale value (mm) Measurement travel Outer ring material
of one pointer
range (mm) revolution (mm)
010
Ident. No.
33011... 3 40 0.01 0.5 Plastic Unit price, € O. R.
Ident. No.
010
33037... 10 58 0.01 1.0 Plastic Unit price, € O. R.
Prod. group 3BD
Dial gauges with aluminium housing DIN 878
Measuring equipment

Application: ƒ Housing made of aluminium, chrome-plated
For measuring lengths and length differences, e.g. ƒ Ident. No. 100: Safety dial gauge with 7 mm free
concentricity, flatness, positional measurements. stroke
Execution: scope of supply and services:
ƒ Measuring pin and clamping shaft made from In a case
durable stainless steel
ƒ Particularly robust thanks to 5 mm reinforced
measuring pins Ident. No. 010 Ident. No. 100
Length measuring Measurement travel
range (mm) Outer Ø (mm) Scale value (mm) of one pointer Shock protection
revolution (mm)
010
Ident. No.
33020... 10 58 0.01 1.0 No Unit price, € O. R.
020
Ident. No.
33020... 10 58 0.01 1.0 Yes Unit price, € O. R.
100
Ident. No.
33020... 0.8 58 0.01 - No Unit price, € O. R.
Prod. group 3BD
