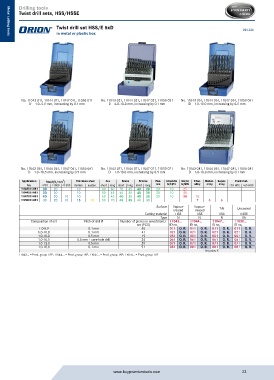

Page 23 - Buy Premium Tools ORION Catalogue

Drilling tools
Twist drill sets, HSS/HSSE

Twist drill set HSS/E 5xD DIN 338
in metal or plastic box
Metal cutting tools
Metal cutting tools

No. 11043 011, 11044 011, 11047 011, 11050 011 No. 11043 021, 11044 021, 11047 021, 11050 021 No. 11043 051, 11044 051, 11047 051, 11050 051
D = 1.0–5.9 mm, increasing by 0.1 mm D = 6.0-10.0 mm, increasing by 0.1 mm D = 1.0-10.0 mm, increasing by 0.5 mm

No. 11043 061, 11044 061, 11047 061, 11050 061 No. 11043 071, 11044 071, 11047 071, 11050 071 No. 11043 081, 11044 081, 11047 081, 11050 081
D = 1.0–10.5 mm, increasing by 0.5 mm D = 1.0-13.0 mm, increasing by 0.5 mm D = 1.0-10.0 mm, increasing by 0.1 mm

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11043011-081 30 20 10 40 60 70 45 40 30 20 10 25
11044011-081 30 20 10 50 45 40 35 40 30 20 10 25
11047011-081 40 20 10 10 50 45 40 35 40 30 20 10 30 10
11050011-081 30 20 10 15 10 50 70 45 35 40 30 7 6 6
Surface Vapour- Vapour- TiN Uncoated
treated treated
Cutting material HSS HSS HSS HSSE
Type N N N VA
Composition of set Pitch of drill Ø Number of pieces in assortment/ 11043... 11044... 11047... 11050...
set (PCS) ID no. ID no. ID no. ID no.
1.0-5.9 0.1 mm 50 011 O. R. 011 O. R. 011 O. R. 011 O. R.
6.0-10.0 0.1 mm 41 021 O. R. 021 O. R. 021 O. R. 021 O. R.
1.0-10.0 0.5 mm 19 051 O. R. 051 O. R. 051 O. R. 051 O. R.
1.0-10.5 0.5 mm + core-hole drill 24 061 O. R. 061 O. R. 061 O. R. 061 O. R.
1.0-13.0 0.5 mm 25 071 O. R. 071 O. R. 071 O. R. 071 O. R.
1.0-10.0 0.1 mm 91 081 O. R. 081 O. R. 081 O. R. 081 O. R.
Set price, €
11043... = Prod. group 1AP; 11044... = Prod. group 1AP; 11047... = Prod. group 1AP; 11050... = Prod. group 102
