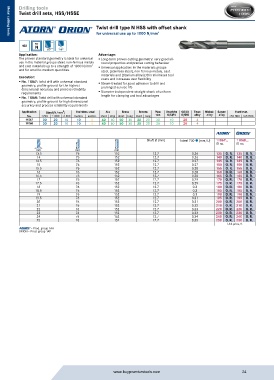

Page 24 - Buy Premium Tools ORION Catalogue

Drilling tools
Twist drill sets, HSS/HSSE

Twist drill type N HSS with offset shank
for universal use up to 1000 N/mm 2
Metal cutting tools
Metal cutting tools
Typ
HSS N
3xD 118°
Application: Advantage:
The proven standard geometry is ideal for universal ƒ Long-term proven cutting geometry: very good all-
use in the material groups steel, non-ferrous metals round properties and precise cutting behaviour
and cast materials up to a strength of 1000 N/mm 2 ƒ Universal application: in the materials groups
and for small to medium quantities. steel, (stainless steel), non-ferrous metals, cast
Execution: materials and (titanium alloys); this minimises tool
costs and increases user flexibility
ƒ No. 11067: Twist drill with universal standard ƒ Steam-treated for good adhesion to drill and
geometry, profile-ground for the highest prolonged service life
dimensional accuracy and process reliability
requirements ƒ Diameter-independent straight shank of uniform
ƒ No. 11068: Twist drill with universal standard length for clamping and tool advantages
geometry, profile-ground for high dimensional
accuracy and process reliability requirements
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11067 30 20 10 10 8 40 60 50 30 30 20 20 10 20 4
11068 30 20 10 10 8 40 60 50 30 30 20 20 10 20 4

Shaft Ø (mm) f steel 700 ˜ (mm/U) 11067... 11068...
ID no. ID no.
mm mm mm
13.5 76 152 12.7 0.26 135 O. R. 135 O. R.
14 76 152 12.7 0.26 140 O. R. 140 O. R.
14.5 76 152 12.7 0.27 145 O. R. 145 O. R.
15 76 152 12.7 0.27 150 O. R. 150 O. R.
15.5 76 152 12.7 0.28 155 O. R. 155 O. R.
16 76 152 12.7 0.28 160 O. R. 160 O. R.
16.5 76 152 12.7 0.28 165 O. R. 165 O. R.
17 76 152 12.7 0.29 170 O. R. 170 O. R.
17.5 76 152 12.7 0.29 175 O. R. 175 O. R.
18 76 152 12.7 0.3 180 O. R. 180 O. R.
18.5 76 152 12.7 0.3 185 O. R. 185 O. R.
19 76 152 12.7 0.3 190 O. R. 190 O. R.
19.5 76 152 12.7 0.31 195 O. R. 195 O. R.
20 76 152 12.7 0.31 200 O. R. 200 O. R.
21 76 152 12.7 0.32 210 O. R. 210 O. R.
22 76 152 12.7 0.33 220 O. R. 220 O. R.
23 76 152 12.7 0.33 230 O. R. 230 O. R.
24 76 152 12.7 0.34 240 O. R. 240 O. R.
25 76 152 12.7 0.35 250 O. R. 250 O. R.
Unit price, €
a = Prod. group 1AA
ORION = Prod. group 1AP
