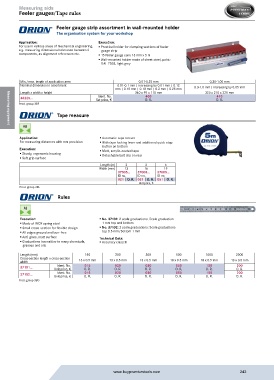

Page 242 - Buy Premium Tools ORION Catalogue

Measuring aids
Feeler gauges/Tape rules

Feeler gauge strip assortment in wall-mounted holder
The organisation system for your workshop
Application: Execution:
For use in various areas of mechanical engineering, ƒ Practical holder for clamping sections of feeler
e.g. measuring dimensional tolerance between 2 gauge strip
components, as alignment references etc. ƒ 15 feeler gauge cans 13 mm x 5 m
ƒ Wall-mounted holder made of sheet steel, paint:
RAL 7035, light grey

Min./max. length of application area 0.01-0.25 mm 0.30-1.00 mm
Nominal dimension in assortment 0.01-0.1 mm | increasing by 0.01 mm | 0.12
mm | 0.15 mm | 0.18 mm | 0.2 mm | 0.25 mm 0.3-1.0 mm | increasing by 0.05 mm
Length x width x height 340 x 95 x 110 mm 320 x 210 x 225 mm
410
400
Ident. No.
36225... Set price, € O. R. O. R.
Prod. group 3BF
Tape measure

Measuring equipment
Application: ƒ Automatic tape retract
For measuring distances with mm precision ƒ With tape locking lever and additional quick stop
button on bottom
Execution: ƒ Matt, acrylic-coated tape
ƒ Sturdy, ergonomic housing ƒ Detachable belt clip on rear
ƒ Soft grip surface
Length (m) 2 3 5
Width (mm) 13 16 19
37005... 37005... 37005...
ID no. ID no. ID no.
021 O. R. 031 O. R. 051 O. R.
Unit price, €
Prod. group 3BL
Rules

Execution: ƒ No. 37101: 2 scale graduations: Scale graduation
ƒ Made of INOX spring steel 1 mm top and bottom
ƒ Small cross-section for flexible design ƒ No. 37102: 2 scale graduations: Scale graduations
ƒ All edges ground and burr-free top 0.5 mm/bottom 1 mm
ƒ Anti-glare, matt surface Technical Data:
ƒ Graduations insensitive to many chemicals, ƒ Accuracy class: II
greases and oils

Length (mm) 150 200 300 500 1000 2000
Cross-section length x cross-section
width 13 x 0.5 mm 13 x 0.5 mm 13 x 0.5 mm 18 x 0.5 mm 18 x 0.5 mm 18 x 0.5 mm
Ident. No.
200
015
100
020
030
37101... Unit price, € O. R. O. R. O. R. 050 O. R. O. R.
O. R.
100
030
Ident. No.
015
020
200
37102... Unit price, € O. R. O. R. O. R. 050 O. R. O. R.
O. R.
Prod. group 3BG
