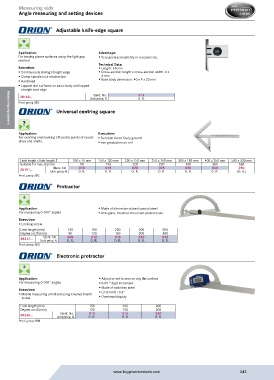

Page 243 - Buy Premium Tools ORION Catalogue

Measuring aids
Angle measuring and setting devices

Adjustable knife-edge square

Application: Advantage:
For testing planar surfaces using the light gap ƒ Very good accessibility in recesses etc.
method
Technical Data:
Execution: ƒ Length: 60 mm
ƒ Continuously sliding straight edge ƒ Cross-section length x cross-section width: 4 x
ƒ Clamp spindle lock mechanism 4 mm
ƒ Hardened ƒ Base body dimension: 40 x 9 x 23 mm
ƒ Lapped test surfaces on basic body and lapped
straight test edge
Ident. No.
38160... Unit price, € 012
O. R.
Prod. group 3BG
Universal centring square

?
Measuring equipment
Application: Execution:
For centring and marking off centre points of round ƒ Function faces finely ground
discs and shafts. ƒ mm graduation on rail

Limb length x limb length 2 100 x 70 mm 150 x 130 mm 200 x 150 mm 250 x 160 mm 300 x 180 mm 400 x 250 mm 500 x 330 mm
Suitable for max. Ø (mm) 90 190 220 230 280 380 530
Ident. No.
020
040
010
030
025
050
38191... Unit price, € O. R. 015 O. R. O. R. O. R. O. R. (O. R.)
O. R.
Prod. group 3BG
Protractor
Application: ƒ Made of chromium-plated special steel
For measuring 0-180° angles ƒ Anti-glare, brushed chromium-plated scale
Execution:
ƒ Locking screw
Limb length (mm) 120 150 200 300 500
Degree arc Ø (mm) 80 120 150 200 300
012
008
020
030
015
Ident. No.
38217... Unit price, € O. R. O. R. O. R. O. R. O. R.
Prod. group 3BG
Electronic protractor

Application: ƒ Adjust or set to zero on any flat surface
For measuring 0-180° angles ƒ 0.05 ° digit increment
Execution: ƒ Made of stainless steel
ƒ Mobile measuring arm fixed using knurled thumb ƒ Error limit ±0.3°
screw ƒ Overhead display
Limb length (mm) 150 200 300
Degree arc Ø (mm) 120 150 200
010
Ident. No.
015
020
38235... Unit price, € O. R. O. R. O. R.
Prod. group 3BM
