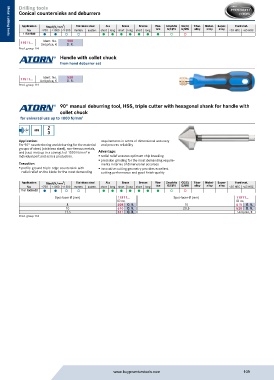

Page 109 - Buy Premium Tools ATORN Catalogue

Drilling tools
Conical countersinks and deburrers

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11511900 ˜ ˜ š š ˜ ˜ ˜ ˜ ˜ ˜ ˜ š š
Metal cutting tools
Metal cutting tools
900
Ident. No.
11511... Set price, € O. R.
Prod. group 114
Handle with collet chuck
from hand deburrer set

530
Ident. No.
11511... Unit price, € O. R.
Prod. group 114

90° manual deburring tool, HSS, triple cutter with hexagonal shank for handle with
collet chuck
for universal use up to 1000 N/mm 2

Z
HSS
3
Application: requirements in terms of dimensional accuracy
For 90° counterboring and deburring for the material and process reliability
groups of steel, (stainless steel), non-ferrous metals,
and (cast iron) up to a strength of 1000 N/mm in Advantage:
2
individual part and series production. ƒ radial relief ensures optimum chip breaking
ƒ precision grinding for the most demanding require-
Execution: ments in terms of dimensional accuracy
ƒ profile-ground triple-edge countersink with ƒ innovative cutting geometry provides excellent
radial relief on the blade for the most demanding cutting performance and good finish quality
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11511508-520 ˜ ˜ š š ˜ ˜ ˜ ˜ ˜ ˜ ˜ š š
Spot-facer Ø (mm) 11511... Spot-facer Ø (mm) 11511...
ID no. ID no.
8 508 O. R. 15 515 O. R.
10 510 O. R. 20.5 520 O. R.
11.5 511 O. R. Unit price, €
Prod. group 114
