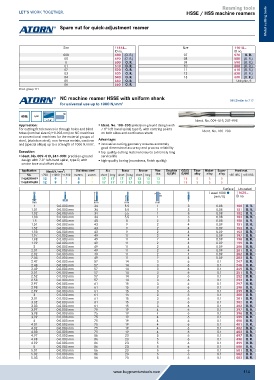

Page 114 - Buy Premium Tools ATORN Catalogue

Reaming tools
HSSE / HSS machine reamers

Spare nut for quick-adjustment reamer Metal cutting tools

Size 11614... Size 11614...
ID no. ID no.
000 480 (O. R.) 07 570 O. R.
00 490 (O. R.) 08 580 (O. R.)
0 500 O. R. 09 590 (O. R.)
01 510 O. R. 10 600 (O. R.)
02 520 O. R. 11 610 (O. R.)
03 530 O. R. 12 620 (O. R.)
04 540 O. R. 13 630 (O. R.)
05 550 O. R. Unit price, €
06 560 O. R.
Prod. group 111
NC machine reamer HSSE with uniform shank
for universal use up to 1000 N/mm 2 DIN Similar to 212

HA
HSSE 0,001
7–8° Ident. No. 009–019, 247–998
Application: ƒ Ident. No. 100–203: precision-ground design with
For cutting fit tolerances in through holes and blind 7-8° left-hand spiral, type B, with centring points Ident. No. 100–203
holes (nominal size=0/+0.003 mm) on NC machines on both sides and continuous shank
or conventional machines for the material groups of
steel, (stainless steel), non-ferrous metals, cast iron Advantage:
and (special alloys) up to a strength of 1000 N/mm . 2 ƒ innovative cutting geometry ensures extremely
good dimensional accuracy and process reliability
Execution: ƒ top-quality cutting material ensures extremely long
ƒ Ident. No. 009–019, 247–998: precision-ground service life
design with 7-8° left-hand spiral, type D, with ƒ high-quality boring (roundness, finish quality)
centre bore and offset shank
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11624298-019 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
11624100-203 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
Surface Uncoated
f steel 1000 ˜ 11624...
h6 (mm/U) ID no.
mm mm mm mm
1 0-0.003 mm 34 5.5 1 3 0.08 100 O. R.
1.01 0-0.003 mm 34 5.5 1 3 0.08 101 O. R.
1.02 0-0.003 mm 34 5.5 1 3 0.08 102 O. R.
1.03 0-0.003 mm 34 5.5 1 3 0.08 103 O. R.
1.5 0-0.003 mm 40 8 2 3 0.08 150 O. R.
1.51 0-0.003 mm 43 9 2 4 0.09 151 O. R.
1.52 0-0.003 mm 43 9 2 4 0.09 152 O. R.
1.53 0-0.003 mm 43 9 2 4 0.09 153 O. R.
1.97 0-0.003 mm 49 11 2 4 0.09 197 O. R.
1.98 0-0.003 mm 49 11 2 4 0.09 198 O. R.
1.99 0-0.003 mm 49 11 2 4 0.09 199 O. R.
2 0-0.003 mm 49 11 2 4 0.09 200 O. R.
2.01 0-0.003 mm 49 11 2 4 0.09 201 O. R.
2.02 0-0.003 mm 49 11 2 4 0.09 202 O. R.
2.03 0-0.003 mm 49 11 2 4 0.09 203 O. R.
2.47 0-0.003 mm 57 14 3 6 0.1 247 O. R.
2.48 0-0.003 mm 57 14 3 6 0.1 248 O. R.
2.49 0-0.003 mm 57 14 3 6 0.1 249 O. R.
2.51 0-0.003 mm 57 14 3 6 0.1 251 O. R.
2.52 0-0.003 mm 57 14 3 6 0.1 252 O. R.
2.53 0-0.003 mm 57 14 3 6 0.1 253 O. R.
2.97 0-0.003 mm 61 15 3 6 0.1 297 O. R.
2.98 0-0.003 mm 61 15 3 6 0.1 298 O. R.
2.99 0-0.003 mm 61 15 3 6 0.1 299 O. R.
3 0-0.003 mm 61 15 3 6 0.1 300 O. R.
3.01 0-0.003 mm 61 15 3 6 0.1 301 O. R.
3.02 0-0.003 mm 61 15 3 6 0.1 302 O. R.
3.03 0-0.003 mm 61 15 3 6 0.1 303 O. R.
3.97 0-0.003 mm 75 19 4 6 0.1 397 O. R.
3.98 0-0.003 mm 75 19 4 6 0.1 398 O. R.
3.99 0-0.003 mm 75 19 4 6 0.1 399 O. R.
4 0-0.003 mm 75 19 4 6 0.1 400 O. R.
4.01 0-0.003 mm 75 19 4 6 0.1 401 O. R.
4.02 0-0.003 mm 75 19 4 6 0.1 402 O. R.
4.03 0-0.003 mm 75 19 4 6 0.1 403 O. R.
4.97 0-0.003 mm 86 23 5 6 0.1 497 O. R.
4.98 0-0.003 mm 86 23 5 6 0.1 498 O. R.
4.99 0-0.003 mm 86 23 5 6 0.1 499 O. R.
5 0-0.003 mm 86 23 5 6 0.1 500 O. R.
5.01 0-0.003 mm 86 23 5 6 0.1 501 O. R.
5.02 0-0.003 mm 86 23 5 6 0.1 502 O. R.
5.03 0-0.003 mm 86 23 5 6 0.1 503 O. R.
