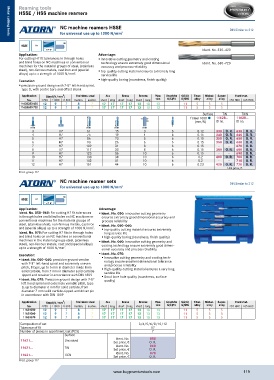

P. 119
Reaming tools
HSSE / HSS machine reamers
NC machine reamers HSSE DIN Similar to 212
for universal use up to 1300 N/mm 2
Metal cutting tools
Metal cutting tools
HA
HSSE
7–8° Ident. No. 330–420
Application: Advantage:
For cutting H7 fit tolerances in through holes innovative cutting geometry and coating
and blind holes on NC machines or conventional technology ensure extremely good dimensional Ident. No. 630–720
machines for the material groups of steel, (stainless accuracy and process reliability
steel), non-ferrous metals, cast iron and (special top-quality cutting material ensures extremely long
alloys) up to a strength of 1000 N/mm . 2 service life
Execution: high-quality boring (roundness, finish quality)
precision-ground design with 7-8° left-hand spiral,
type D, with centre bore and offset shank
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11628330-420 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
11628630-720 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
Surface TiN TiCN
f steel 1000 11628... 11628...
h6 (mm/U) ID no. ID no.
mm mm mm mm
3 H7 61 15 3 6 0.12 330 O. R. 630 O. R.
4 H7 75 19 4 6 0.15 340 O. R. 640 O. R.
5 H7 86 23 5 6 0.15 350 O. R. 650 O. R.
6 H7 93 26 6 6 0.15 360 O. R. 660 O. R.
7 H7 109 31 8 6 0.15 - - 670 O. R.
8 H7 117 33 8 6 0.15 380 O. R. 680 O. R.
9 H7 125 36 10 6 0.15 - - 690 O. R.
10 H7 133 38 10 6 0.2 400 O. R. 700 O. R.
11 H7 142 41 10 6 0.2 - - 710 O. R.
12 H7 151 44 10 6 0.23 420 O. R. 720 O. R.
Unit price, €
Prod. group 117
NC machine reamer sets DIN Similar to 212
for universal use up to 1300 N/mm 2
HA
HSSE
7–8°
Application: Advantage:
Ident. No. 050–060: For cutting H7 fit tolerances Ident. No. 050: innovative cutting geometry
in through holes and blind holes on NC machines or ensures extremely good dimensional accuracy and
conventional machines for the material groups of process reliability
steel, (stainless steel), non-ferrous metals, cast iron Ident. No. 050–060:
and (special alloys) up to a strength of 1000 N/mm . 2 top-quality cutting material ensures extremely
Ident. No. 070: For cutting H7 fits in through holes long service life
and blind holes on an NC machine or conventional high-quality boring (roundness, finish quality)
machines in the material groups steel, (stainless Ident. No. 060: innovative cutting geometry and
steel), non-ferrous metals, cast and (special alloys) coating technology ensure extremely good dimen-
up to a strength of 1000 N/mm . 2 sional accuracy and process reliability
Execution: Ident. No. 070:
Ident. No. 050–060: precision-ground version Innovative cutting geometry and coating tech-
nology ensure excellent dimensional tolerance
with 7-8° left-hand spiral and extremely uneven and process reliability
pitch, B type, up to 6 mm in diameter made from High-quality cutting material ensures a very long
solid carbide, from 7 mm in diameter solid carbide service life
tipped and retainer in accordance with DIN 1809 Good bore hole quality (roundness, surface
Ident. No. 070: Precision-ground design with 7-8° quality)
left-hand spiral and extremely variable pitch, type
B, up to diameter 6 mm for solid carbide, from
diameter 7 mm solid carbide-tipped and driver pin
in accordance with DIN 1809
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11621050 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
11621060 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
11621070 12 9 7 8 7 17 17 17 17 13 13 13 11 5 5 5
Composition of set 3/4/5/6/8/10/12
Tolerance of fit H7
Number of pieces in assortment/set (PCS) 7
Surface
Ident. No.
050
11621... Uncoated Set price, € O. R.
060
Ident. No.
11621... TiN Set price, € O. R.
070
Ident. No.
11621... TiCN Set price, € O. R.
Prod. group 117
