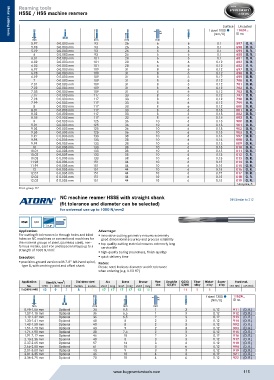

Page 115 - Buy Premium Tools ATORN Catalogue

Reaming tools
HSSE / HSS machine reamers

Surface Uncoated
f steel 1000 ˜ 11624...
h6 (mm/U) ID no.
Metal cutting tools
Metal cutting tools
mm mm mm mm
5.97 0-0.003 mm 93 26 6 6 0.1 597 O. R.
5.98 0-0.003 mm 93 26 6 6 0.1 598 O. R.
5.99 0-0.003 mm 93 26 6 6 0.1 599 O. R.
6 0-0.003 mm 93 26 6 6 0.1 600 O. R.
6.01 0-0.003 mm 101 28 6 6 0.1 601 O. R.
6.02 0-0.003 mm 101 28 6 6 0.12 602 O. R.
6.03 0-0.003 mm 101 28 6 6 0.12 603 O. R.
6.97 0-0.003 mm 109 31 8 6 0.12 697 O. R.
6.98 0-0.003 mm 109 31 8 6 0.12 698 O. R.
6.99 0-0.003 mm 109 31 8 6 0.12 699 O. R.
7 0-0.003 mm 109 31 8 6 0.12 700 O. R.
7.01 0-0.003 mm 109 31 8 6 0.12 701 O. R.
7.02 0-0.003 mm 109 31 8 6 0.12 702 O. R.
7.03 0-0.003 mm 109 31 8 6 0.12 703 O. R.
7.97 0-0.003 mm 117 33 8 6 0.12 797 O. R.
7.98 0-0.003 mm 117 33 8 6 0.12 798 O. R.
7.99 0-0.003 mm 117 33 8 6 0.12 799 O. R.
8 0-0.003 mm 117 33 8 6 0.12 800 O. R.
8.01 0-0.003 mm 117 33 8 6 0.13 801 O. R.
8.02 0-0.003 mm 117 33 8 6 0.13 802 O. R.
8.03 0-0.003 mm 117 33 8 6 0.13 803 O. R.
9 0-0.003 mm 125 36 10 6 0.13 900 O. R.
9.01 0-0.003 mm 125 36 10 6 0.13 901 O. R.
9.02 0-0.003 mm 125 36 10 6 0.13 902 O. R.
9.03 0-0.003 mm 125 36 10 6 0.13 903 O. R.
9.97 0-0.003 mm 133 38 10 6 0.13 997 O. R.
9.98 0-0.003 mm 133 38 10 6 0.13 998 O. R.
9.99 0-0.003 mm 133 38 10 6 0.13 009 O. R.
10 0-0.003 mm 133 38 10 6 0.13 010 O. R.
10.01 0-0.003 mm 133 38 10 6 0.13 011 O. R.
10.02 0-0.003 mm 133 38 10 6 0.13 012 O. R.
10.03 0-0.003 mm 133 38 10 6 0.13 013 O. R.
11.98 0-0.003 mm 151 44 10 6 0.15 014 O. R.
11.99 0-0.003 mm 151 44 10 6 0.15 015 O. R.
12 0-0.003 mm 151 44 10 6 0.15 016 O. R.
12.01 0-0.003 mm 151 44 10 6 0.15 017 O. R.
12.02 0-0.003 mm 151 44 10 6 0.15 018 O. R.
12.03 0-0.003 mm 151 44 10 6 0.15 019 O. R.
Unit price, €
Prod. group 117
NC machine reamer HSSE with straight shank DIN Similar to 212
(fit tolerance and diameter can be selected)
for universal use up to 1000 N/mm2

HA
HSSE 0,00X
7–8°
Application: Advantage:
For cutting fit tolerances in through holes and blind ƒ innovative cutting geometry ensures extremely
holes on NC machines or conventional machines for good dimensional accuracy and process reliability
the material groups of steel, (stainless steel), non- ƒ top-quality cutting material ensures extremely long
ferrous metals, cast iron and (special alloys) up to a service life
strength of 1000 N/mm . 2 ƒ high-quality boring (roundness, finish quality)
Execution: ƒ quick delivery time
ƒ precision-ground version with 7-8° left-hand spiral, Notes:
type B, with centring point and offset shank Please note! Indicate diameter and fit tolerance
when ordering (e.g. 8.53 H7)

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11624911-995 12 9 7 8 7 17 17 17 17 13 13 11 5 5
f steel 1300 ˜ 11624...
h6 (mm/U) ID no.
mm mm mm mm
0.95-1.06 mm Optional 34 5.5 1 3 0.12 911 (O. R.)
1.07-1.18 mm Optional 36 6.5 1 3 0.12 912 (O. R.)
1.19-1.32 mm Optional 36 6.5 2 3 0.12 913 (O. R.)
1.33-1.41 mm Optional 40 8 2 3 0.12 914 (O. R.)
1.42-1.50 mm Optional 40 8 2 3 0.12 992 (O. R.)
1.51-1.70 mm Optional 43 9 2 3 0.12 993 (O. R.)
1.71-1.90 mm Optional 38 7.5 2 3 0.12 915 (O. R.)
1.91-2.12 mm Optional 46 10 2 3 0.12 916 (O. R.)
2.13-2.36 mm Optional 40 8 3 3 0.12 917 (O. R.)
2.37-2.65 mm Optional 57 14 3 4 0.12 918 (O. R.)
2.66-2.80 mm Optional 61 15 3 6 0.12 994 (O. R.)
2.81-3.00 mm Optional 43 9 3 3 0.12 919 (O. R.)
3.01-3.35 mm Optional 46 10 4 4 0.12 921 (O. R.)
3.36-3.75 mm Optional 70 18 4 6 0.12 922 (O. R.)
